Curved LED Display

Curved LED display

It is mainly composed of bendable flexible modules and customized sheet metal screen cabinets.

The shape can be freely designed according to the on-site environment. It can produce cylindrical screens, inner arc screens, outer arc screens, ring screens, streamer screens, spherical screens, and dome screens. Other shaped screens can be realized through customized modules, including bowl-shaped screens, letter screens and other shapes.

Products are widely used in various scenarios, including immersive, exhibition halls, science and technology museums, conference rooms, smart centers, etc.

SMD flexible LED module

A new generation of soft modules with larger bending angles and better display effects

Flexible PCB board

Flexible LED modules use soft PCB boards as substrates. This flexible design allows the LED module to adapt to various curved surface shapes, thereby achieving a high degree of customization and flexibility. Whether it is a curve, arc or other complex shape, it can be easily realized.

Multi-layer board design

The multi-layer board design increases the stability and reliability of the module. This design allows for more circuit components and connections, provides better circuit layout and thermal management, and ensures module performance stability.

Large-angle folding

Flexible LED modules have the ability to fold at large angles, allowing them to freely change shapes in different application scenarios, such as curved walls, curved displays and other creative designs.

Silicone bottom case

he silicone bottom case is an important part of the flexible LED module. The silicone bottom shell is flexible and resistant to high temperature, cold, and weather, which enables it to protect the circuits and components inside the LED module under various environ

Environmentally friendly materials

Flexible LED modules usually use environmentally friendly materials that comply with international environmental standards and help reduce negative impacts on the environment.

Module thin and light design

Standard size soft module, size is 320X160mm, 240x120mm. Special shapes can be customized into circular, fan-shaped and other different shapes and sizes.
The module has a thin and light design, the thickness of the regular wide module is 8.6mm, and the thickness of the thin and light module is 5.1mm.
Indoor modules have different point spacings of 0.9mm-4mm, the minimum point spacing of SMD is 0.9mm, and the classic models are 1.25mm, 1.56mm, and 1.86mm.
The module performance is stable and reliable. Low current, low heat, high contrast ratio over 5000:1, refresh rate 1920-3840Hz, 14-18bit gray scale, viewing angle up to 160°.

Smooth and seamless

The module is installed with strong magnetic adsorption and can be finely adjusted. The magnetic content of a single module reaches 2000 GS, which solves the problems of degumming and warping of ordinary modules, and the screen body has good flatness.

The PCB board uses copper pillar welding and adhesive backing to form a lockable base with the bottom case, making the module more solid and reliable.

The cabinet structure adopts a high-strength sheet metal sandblasted iron cabinet, with a unique segmented splicing process, which effectively reduces the screen splicing gaps.

播放视频

Module details

Main module specifications

240X120mm Flexible Indoor LED Module parameters
Model	P0.9	P1.25	P1.579	P1.667	P1.875	P2	P2.5	P3	P4
Pixel pitch(mm)	0.9	1.25	1.579	1.667	1.875	2	2.5	3	4
Module dimension(mm)	240*120	240*120	240*120	240*120	240*120	240*120	240*120	240*120	240*120
Module resolution	256*128	192*96	152*76	144*72	128*64	120*60	96*48	80*40	60*30
LED specification	SMD 4in1	SMD1010	SMD1212	SMD1212	SMD1515	SMD1515	SMD1515	SMD2121	SMD2121
Density(dots/m2)	1137777	640000	401111	360000	284444	250000	160000	111111	62500
Scan	1/64s	1/48s	1/38s	1/36s	1/32s	1/30s	1/24s	1/20s	1/15s
Brightness(cd/m2)	650	650	700	700	800	700	700	650	650
IC quantity	72	72	60	54	48	48	36	30	24
Refresh rate	3840	3840	3840	3840	3840	3840	3840	1920	1920

320X160mm Flexible Indoor LED Module parameters
Model	P1.25	P1.29	P1.5	P1.8	P2	P2.5	P3	P4
Pixel pitch(mm)	1.25	1.29	1.5	1.8	2	2.5	3	4
Module dimension(mm)	320*160	320*160	320*160	320*160	320*160	320*160	320*160	320*160
Module resolution	256*128	248*124	204*102	172*86	160*80	128*64	104*52	80*40
LED specification	TOP1010	CHIP1010	SMD1212	SMD1515	SMD1515	SMD1515	SMD1515	SMD2121
Density(dots/m2)	640000	600625	406406	288906	250000	160000	105625	62500
Scan	1/64s	1/62s	1/51s	1/43s	1/40s	1/32s	1/26s	1/20s
Brightness(cd/m2)	600	600	600	600	600	700	700	600
IC quantity	96	96	88	66	60	48	42	30
Refresh rate	3840	3840	3840	3840	3840	3840	3840	1920

Customized sheet metal cabinets

Customize the sheet metal LED cabinet according to the shape of the display screen. Cabinets are divided into simple cabinets and sealed cabinets.
The cabinet has good flatness, smooth curved surface, and is firm and not deformed.
The dimensions of the cabinets and modules are carefully calculated and designed to strictly meet the precise requirements of the site.
The cabinet fully considers the convenience of installation, and scientifically designs the installation positions of positioning posts, heat dissipation holes, wiring holes, grounding bases, module bottom brackets, receiving cards, power supplies and other components.

LED large screen solution

LED curved display screens have a wide range of applications, such as conference centers, smart centers, exhibition halls, etc. We can provide complete audio and video solutions and products based on different scenarios.

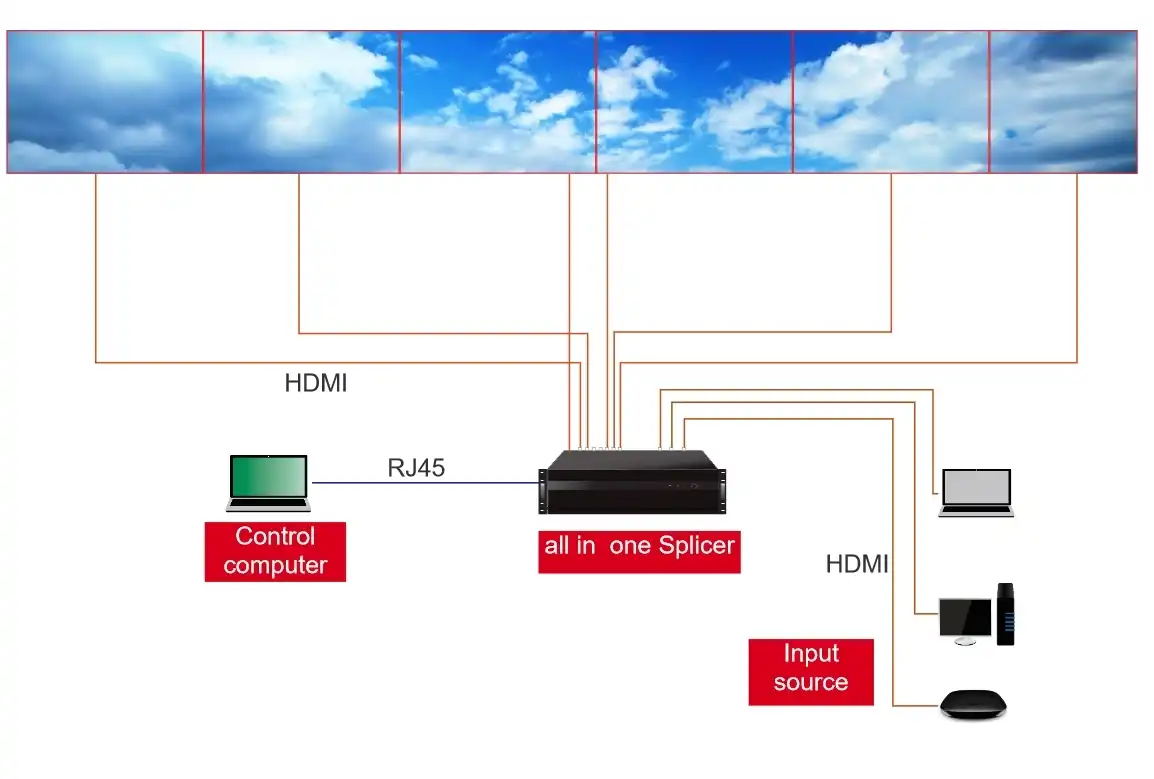

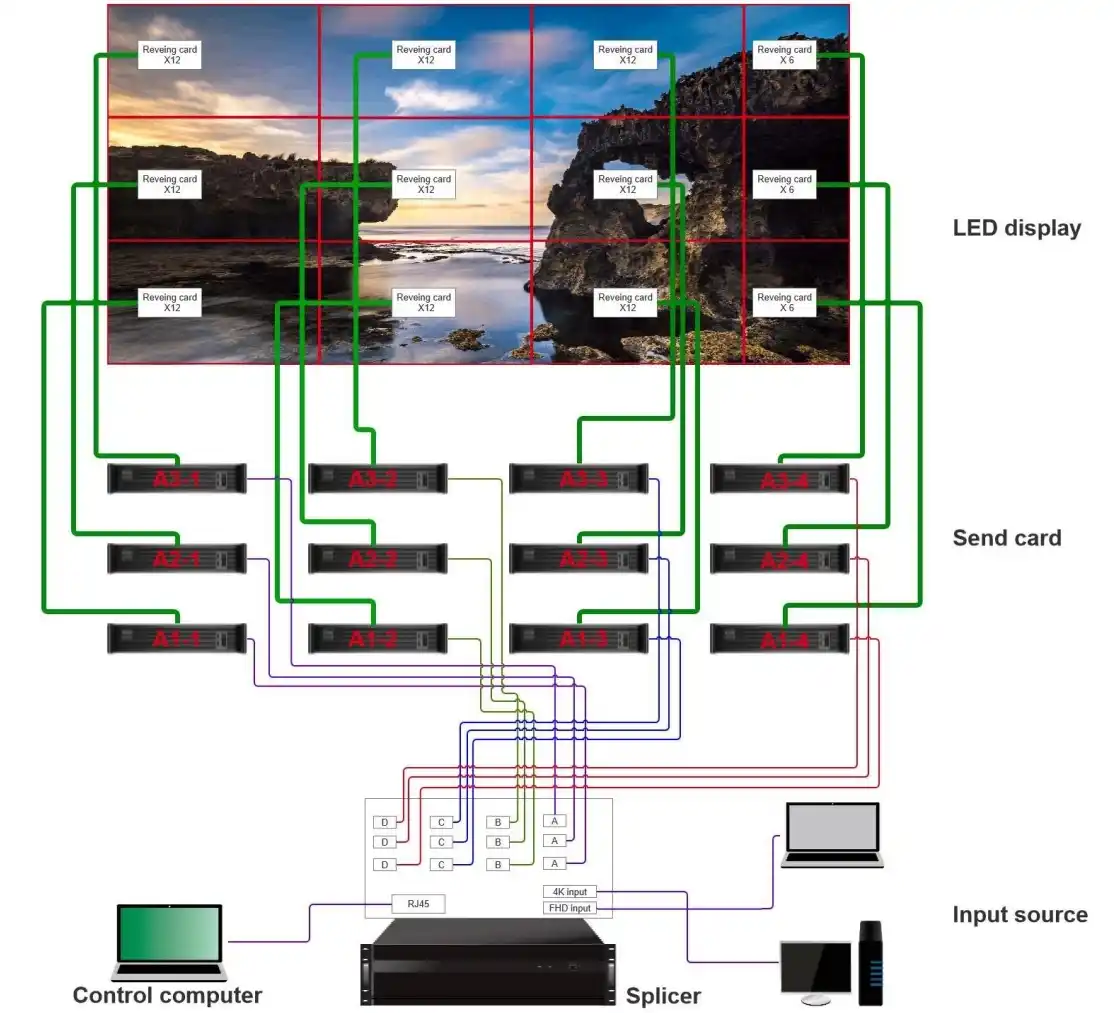

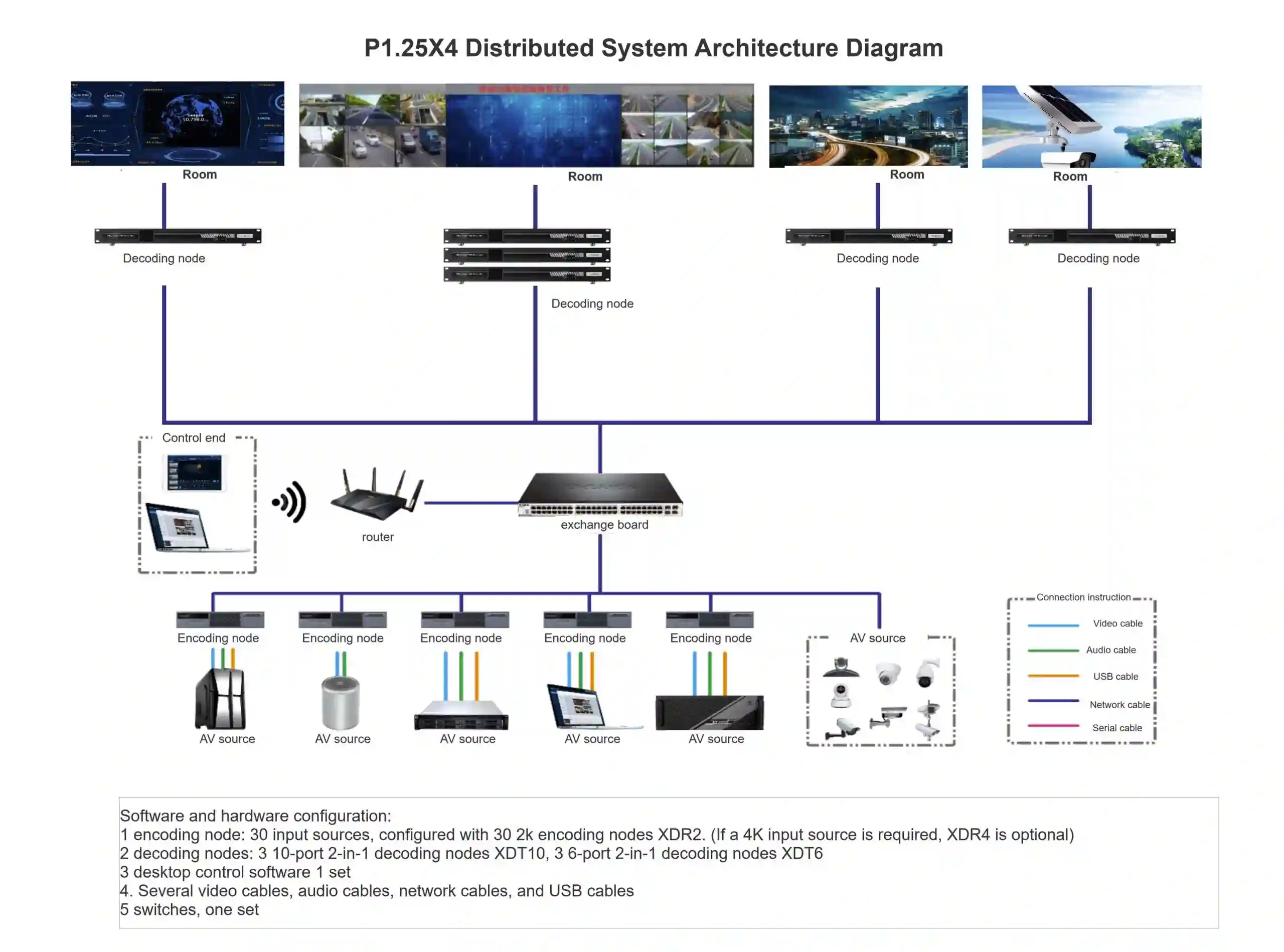

There are two main display schemes: centralized and distributed. Centralized systems are suitable for scenarios where devices are relatively centralized, requiring strong synchronization and no compression; Distributed systems are suitable for distributed deployment scenarios across rooms and floors.
