TRUE 4K · FPGA HARDWARE ARCHITECTURE
PEL Series 4K Video Wall Controller Zero-Latency FPGA Processor & Splicer
Pure hardware plug-in architecture based on high-performance FPGA and crosspoint matrix bus switching. True 4K@60Hz RGB 4:4:4, universal multi-input, multi-layer display — engineered for command centers, exhibition halls and conference rooms.
Common Video Wall Challenges — Solved
Pure hardware plug-in architecture based on high-performance FPGA
and crosspoint matrix bus switching.True 4K@60Hz RGB 4:4:4,
universal multi-input, multi-layer display — engineered for command centers, exhibition halls and conference rooms.
⚠ Signal Compatibility
Mixing HDMI, SDI, VGA and DP sources creates integration nightmares. PEL Series handles all major interfaces on a single platform — no external converters, no extra cost.
⚠ Latency & Frame Loss
Software-based processors introduce lag and dropped frames exactly when you need them least. PEL’s pure FPGA hardware architecture delivers smooth, clear output at 4K@60Hz — no jamming, no frame loss.
⚠ Complex Control
Managing multi-screen setups from different devices is chaotic. PEL supports tablet, all-in-one console and PC control, with RS422/RS485/RS232 for seamless central control integration.
Why Choose the PEL Series Video Wall Processor
Four engineering decisions that make the difference between a display wall that works and one you never have to worry about.
True 4K@60Hz RGB 4:4:4
Full 4K×2K@60Hz input and output with RGB 4:4:4 chroma sampling. Crystal-clear picture, no jamming, no frame loss.
Universal Multi-Input
HDMI 1.3/1.4/2.0, DVI, VGA, DP 1.2, 3G-SDI, RJ45. Audio transmission and RS422/RS485/RS232 for central control.
Multi-Layer Display
Multiple layers with 90° rotation, horizontal and vertical mirroring. Standard, irregular and creative splicing layouts.
FPGA Hardware Architecture
Pure hardware plug-in design with high-performance FPGA and crosspoint matrix bus. No OS, no crashes — 24/7 reliability.
Technical Specifications
A new generation high-performance video splicing processor — engineered for mission-critical display environments.
| Chassis | 1.5U | 3U | 3U Pro | 7U | 7U Pro | 14U |
|---|---|---|---|---|---|---|
| Load Capacity (Spliced ) | 9*(2K1K) | 16*(2K1K) | 24*(2K1K) | 36*(2K1K) | 52*(2K1K) | 72*(2K1K) |
| Single‑Port Output Limit | Maximum output width of a single video port is 2560, and the maximum height is 2560 | |||||
| Input Card Slot | 1 fixed _4ch HDMI input card | Maximum 7 | Maximum 8 | Maximum 15 | Maximum 12 | Maximum 31 |
| Output Card Slot | 1 fixed (9*HDMI 1.3) card, non‑replaceable | Maximum 4 | Maximum 6 | Maximum 9 | Maximum 13 | Maximum 18 |
| Dual Control | × | √ | √ | √ | √ | √ |
| Number of Screens | 9 | 16 | 24 | 36 | 52 | 72 |
| Number of Layers | 4 | Each card 8 | ||||
| User Scenario | 2000 | |||||
| Preview card (Optional) | × | √ | √ | √ | √ | √ |
| Redundant power supply(Optional) | × | × | × | √ | √ | √ |
| Audio out | × | Supports 3.5mm independent audio output + HDMI accompanying audio output | ||||
| Central control | TCP/IP& RS232 | |||||
| Input Card type | Standard is a 4‑ch HDMI input card, compatible with other types of cards | 4‑channel HDMI input card, 4‑channel DVI input card, 4‑channel VGA input card, 1‑channel HDMI 2.0 input card, 1‑channel DP 1.2 input card, 4‑channel 3G‑SDI input card, Standard central control daughter card, 2×Ethernet IP decoding card | ||||
| Output Card type | fixed (9*HDMI 1.3) card, non‑replaceable | 4‑channel HDMI output card, 4‑channel DVI output card, 1‑channel HDMI 2.0 output card, 4‑channel Ethernet video output card, 4‑channel HDMI audio output card, 2‑channel Ethernet + 1‑channel HDMI 1.3 preview card, 2‑channel HDMI 1.4 + 2‑channel audio output card, 1‑channel HDMI 2.0 + 1‑channel Audio output card | ||||
| Control card | IR IN interface *1, IR OUT interface *1, I/O interface *1, RELAY OUT interface *2, COM IN interface *1, COM OUT interface *1, USB 2.0 interface *1, ETHERNET *1 | |||||
Built for Mission-Critical Display Environments
Wherever the picture must be perfect and the system must never stop, the PEL Series is at home.
Command & Control Centers
Real-time multi-source monitoring with zero-latency switching. FPGA architecture ensures 24/7 stability for operations where every frame matters.

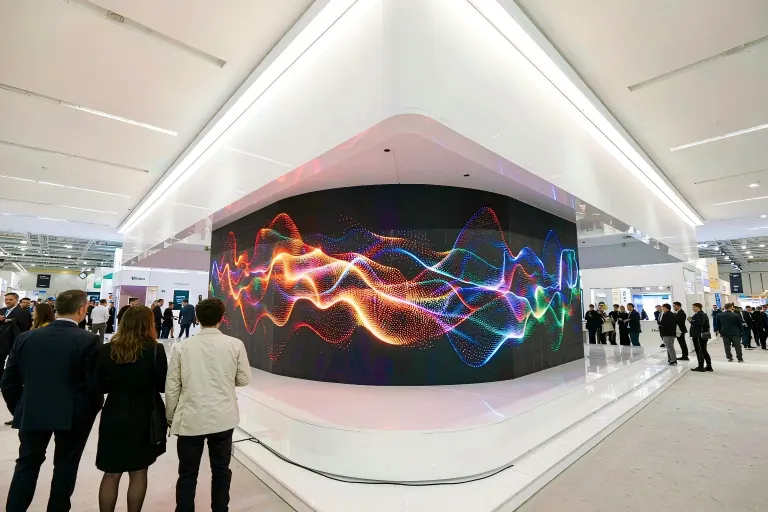

Exhibition Halls & Showrooms
Create immersive video walls with creative splicing. Multi-layer rotation and mirroring enable eye-catching configurations that stop visitors in their tracks.

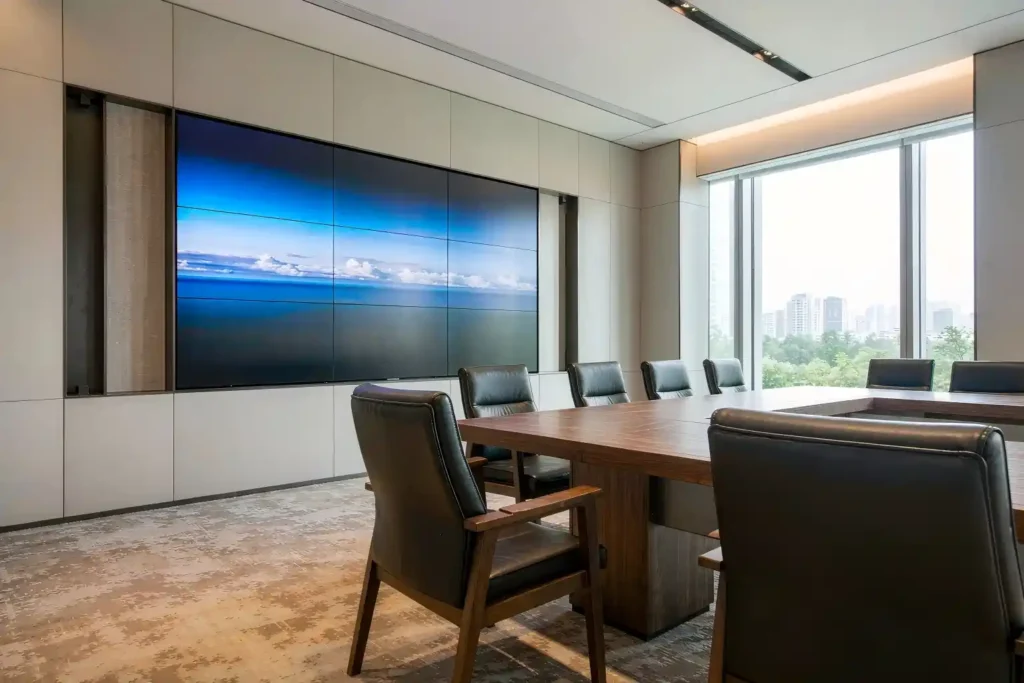

Conference & Meeting Rooms
Seamlessly switch between presenters, screens and content sources. Intuitive tablet control with RS232 connects to room automation systems.

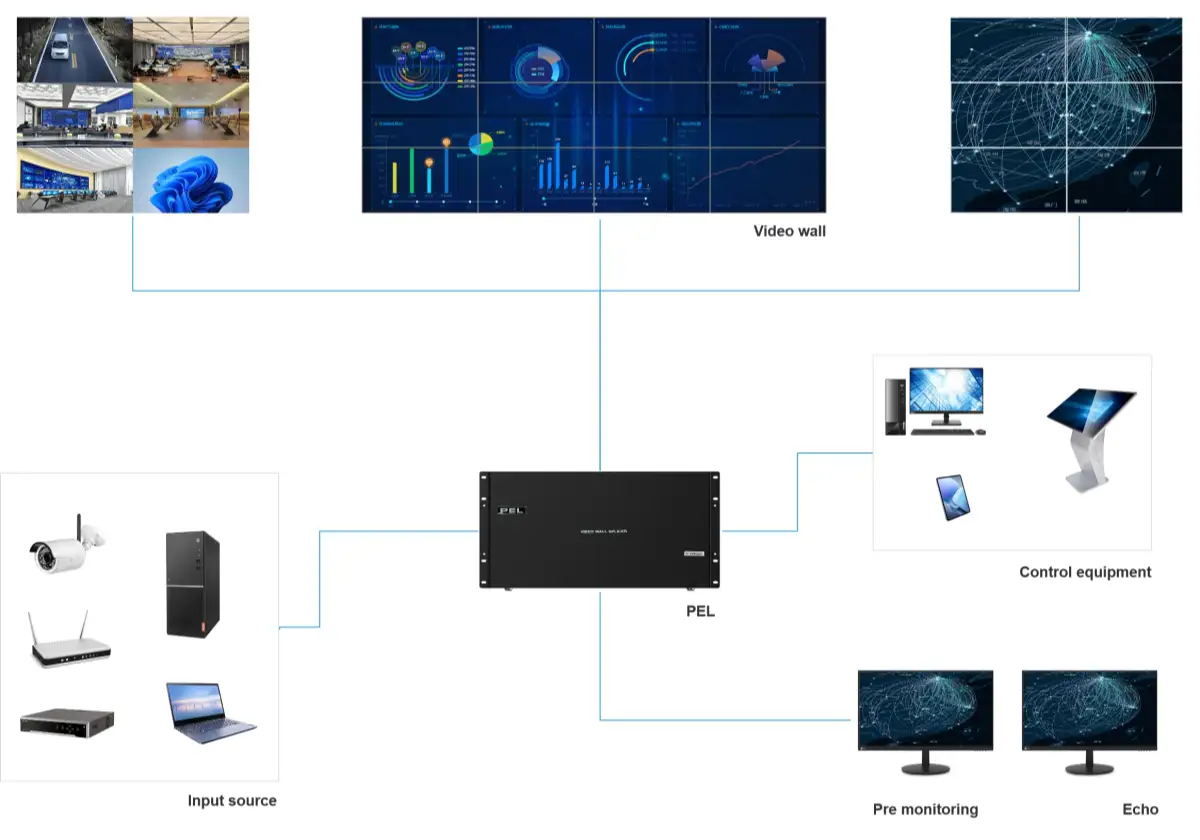

PEL Series High‑Performance Video Splicing Processor
PEL series is a new generation of high-performance video splicing processor. It adopts pure hardware plug-in architecture based on high-performance FPGA and crosspoint matrix bus switching technology. It supports multi terminal control such as tablet computer, all-in-one console and PC, widely used in exhibition halls, command centers, conference rooms and other scenes.
Multi‑layer Display, Rich Signal Interfaces & True 4K@60Hz Processing Performance
Multiple layer display is supported. The layer supports 90 ° rotation, horizontal and vertical mirroring. Meet various splicing requirements and irregular splicing requirements.
Support multiple signal interfaces. HDMI1.3, HDMI1.4, HDMI2.0, DVI, VGA, DP1.2, 3G SDI, RJ45. It supports audio transmission, RS422/RS485/RS232, and connection to central control.
Support true 4K（ 4Kx2K@60Hz , RGB4: 4: 4) Signal acquisition and output. The real 4K input and output board is selected, with smooth and clear picture, without jamming and frame loss.
Trusted by AV Integrators Worldwide
Trusted Testimonials From Live AV & LED Display Projects Worldwide
“The PEL Series controller replaced our old software-based processor. Zero latency, zero frame drops — our command center displays have never been more reliable. The multi-input support saved us from buying separate signal converters.”
— AV Systems Integrator
Command Center Project, Middle East

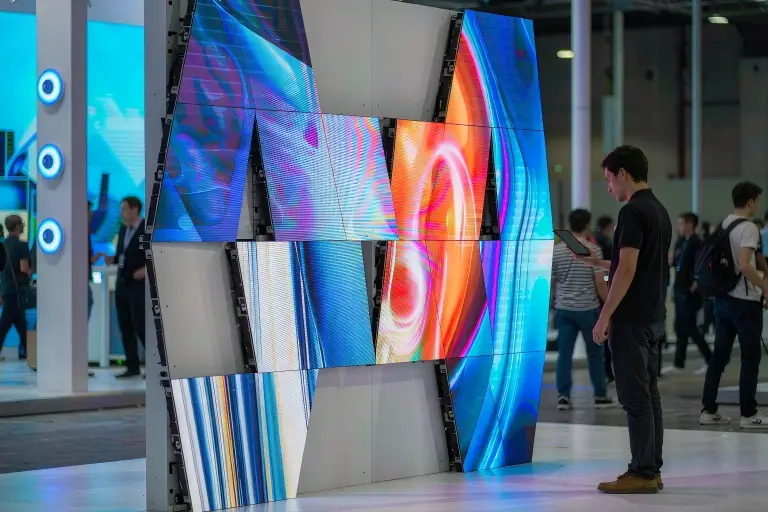

“We needed irregular splicing for a custom exhibition wall. The multi-layer rotation and mirroring features made it possible — and the tablet control made day-to-day operation effortless for our team.”
— Exhibition Solutions Company
Trade Show Display Project
“XINGSHILED customized the input board configuration for our specific signal mix. The RS232 integration with our room automation was seamless. Great engineering support throughout.”
— Corporate AV Manager

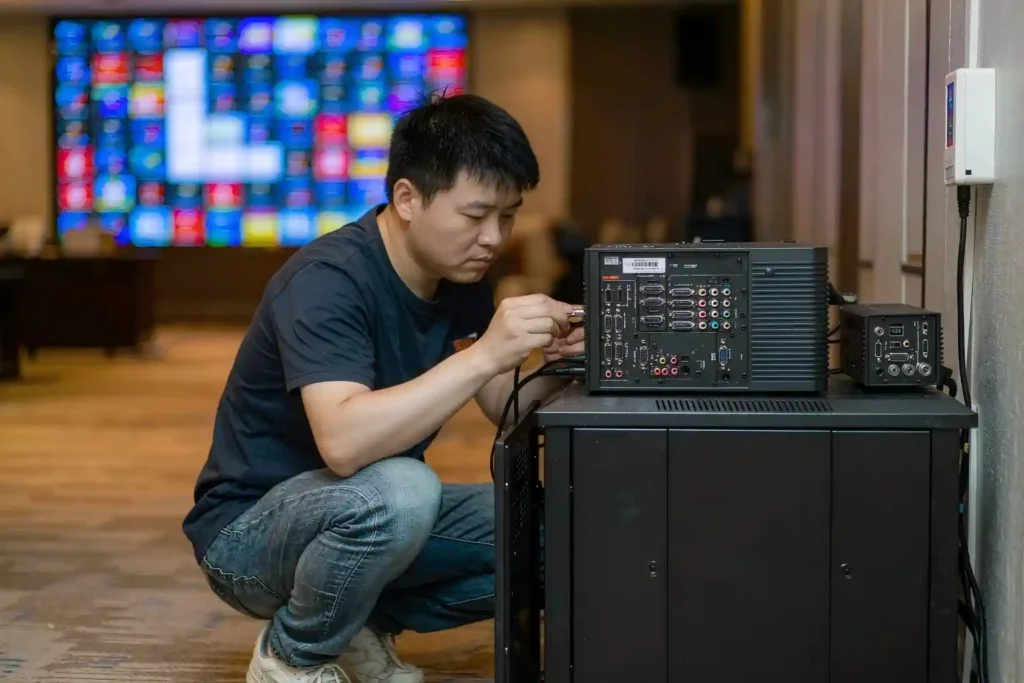

Conference Center Project
Frequently Asked Questions
Everything you need to know about the PEL Series before you ask.
Ready to Upgrade Your Video Wall?
Tell us your display size, signal sources and control requirements — we’ll recommend the optimal PEL Series configuration for your project, with pricing and delivery within 24 hours.
