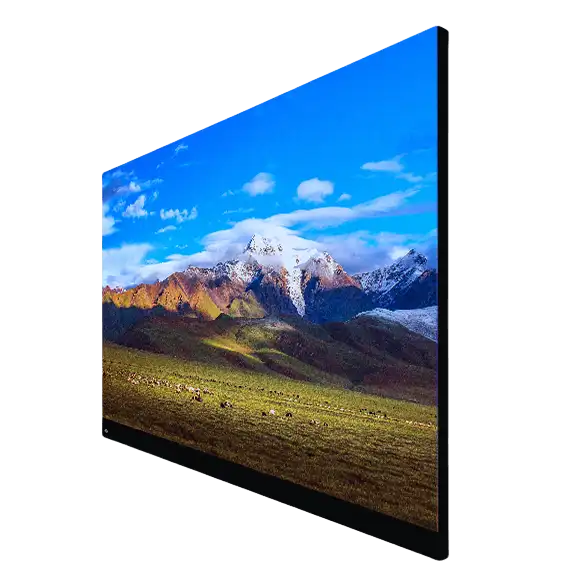

Genuine Eye-protecting
LED Display

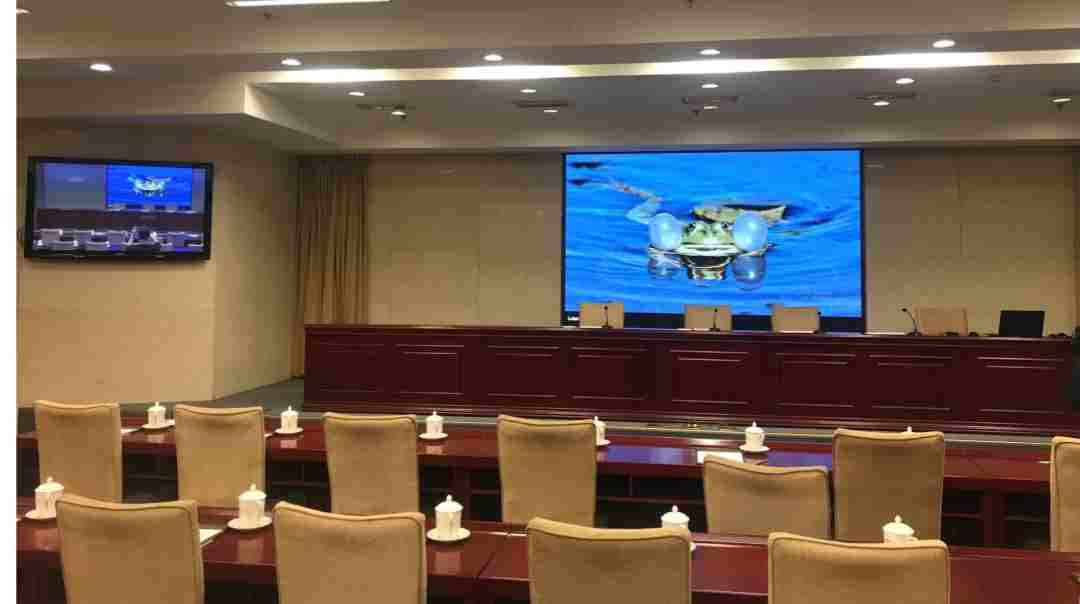

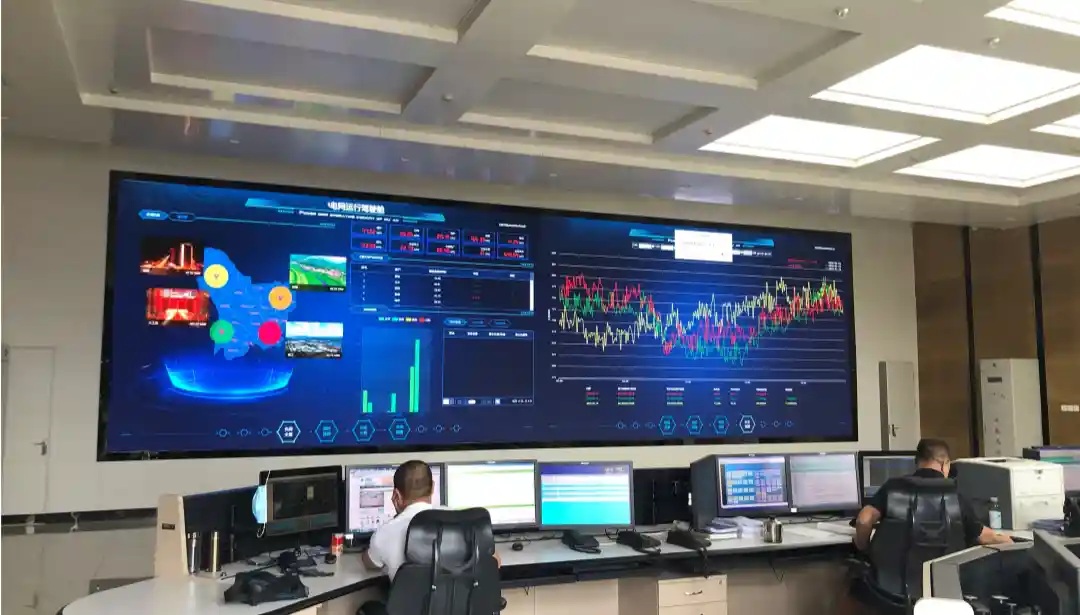

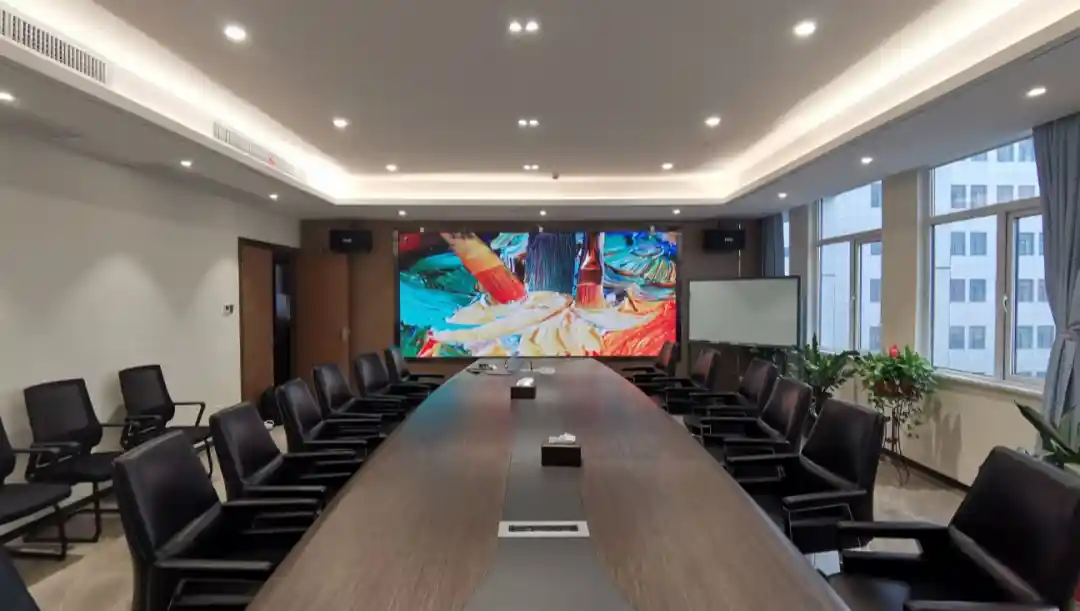

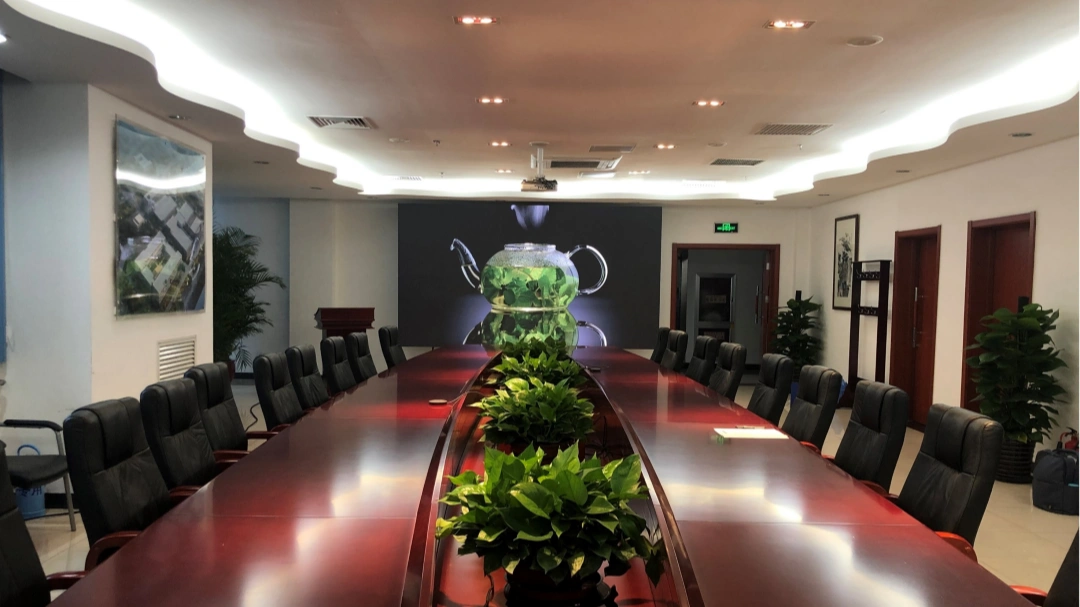

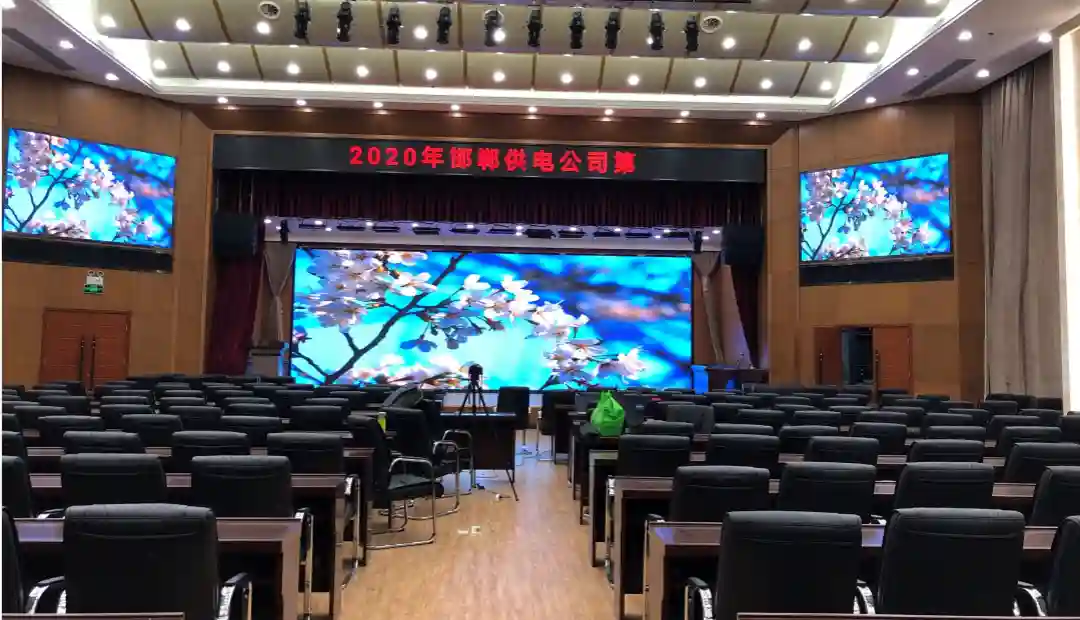

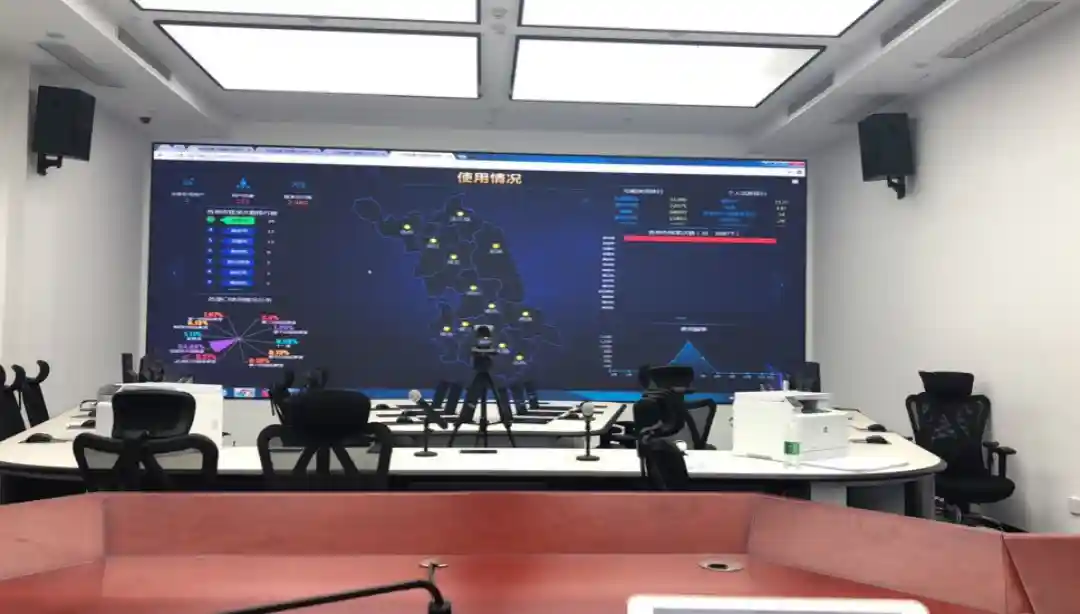

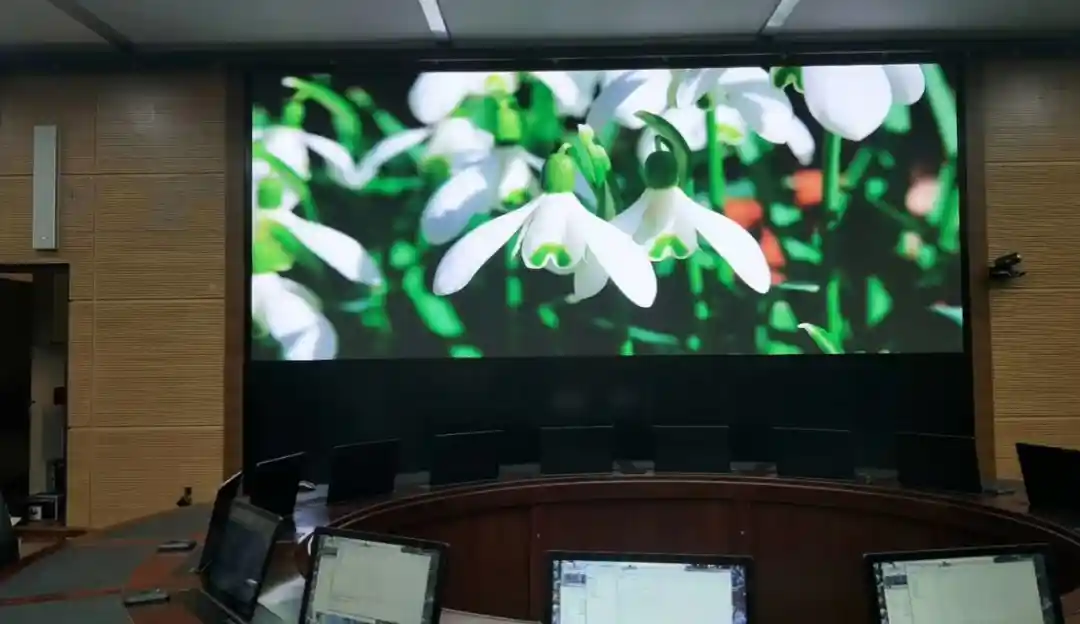

The LP series is a truly eye-protecting LED display. Mainly suitable for classrooms, studios. Its excellent display effect is also used in conference rooms, command centers, etc.
Why Choose LP Series LED Display for Your Display
Really eye-protecting
Highly effective against blue light
No moiré
Surface Light Source Display
Strong protection
Professional Protective Lens
Execllent picture
Global System Display Calibration
How does LP series protect eyes?

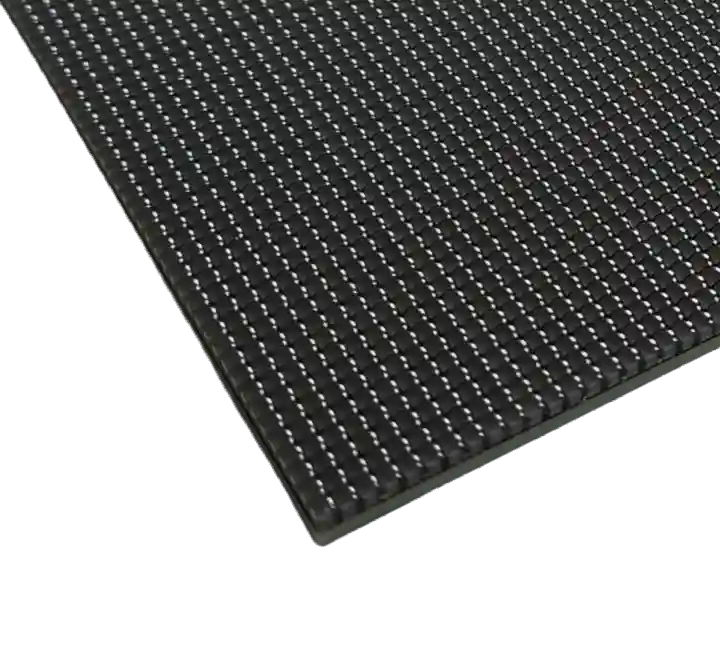

Tiny RGB light source, along with patented micro-spherical lenses, form unit pixels. Revised display of each LED light, aiming for eye comfort and softness.
Pixel pitch can reach 1.6mm, with support for customization in any size. Specially designed for large screens in classrooms and studios.
The eye protection level is 200 times that of ordinary LEDs and 50 times that of LCD screens. It is comparable to reading a paper book and is suitable for long-term viewing.

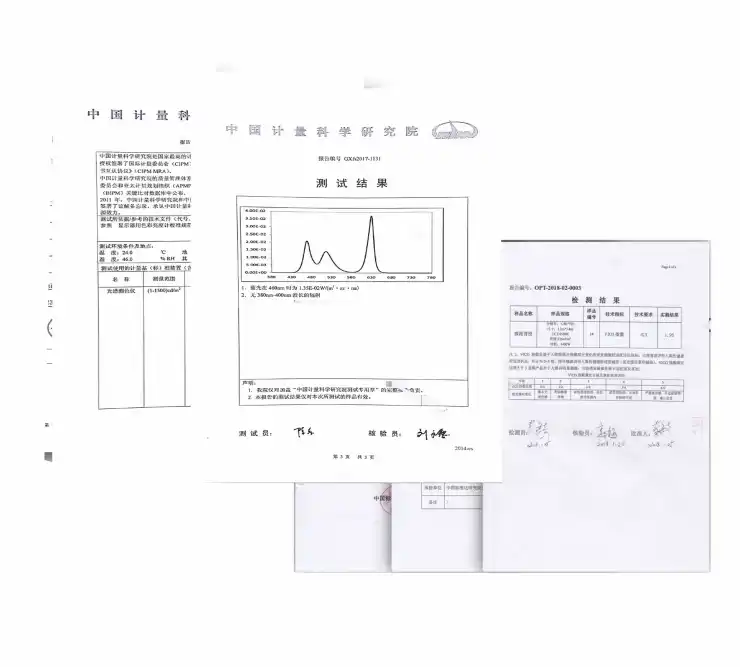

Certified with blue light radiation at 460nm measuring only 1.35E-02W/(m²·sr·nm), leading in display industry, effectively reducing the harm of high-intensity short-wave light to the human eye. VICO Eye-Care Index is 1.95, significantly lower than the eye-care standard of 3. This indicates a very high level of eye protection.

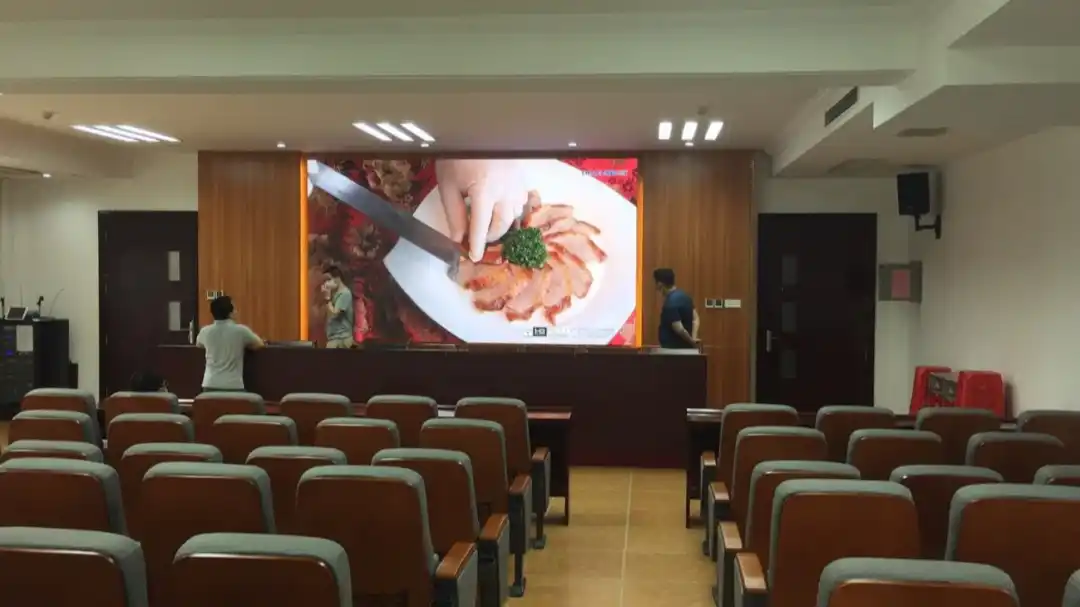

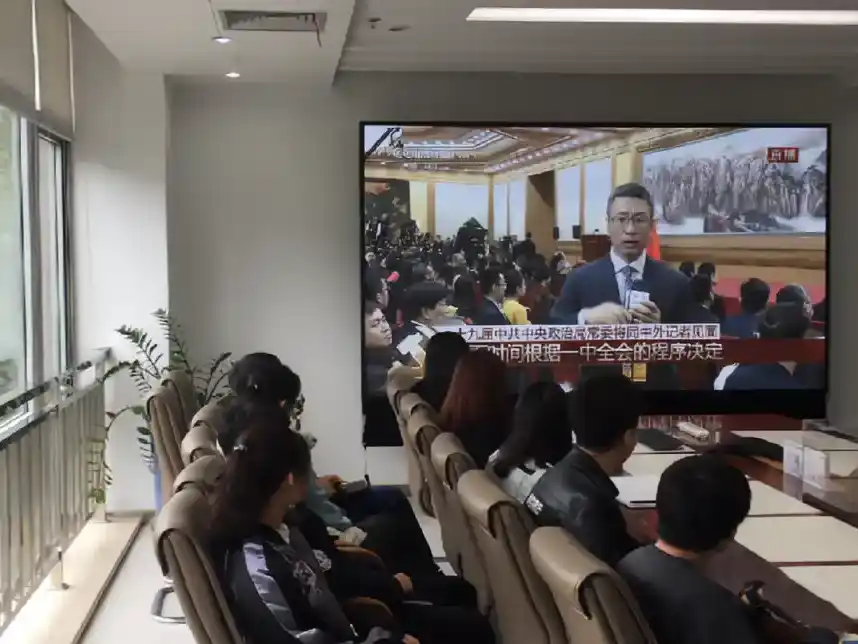

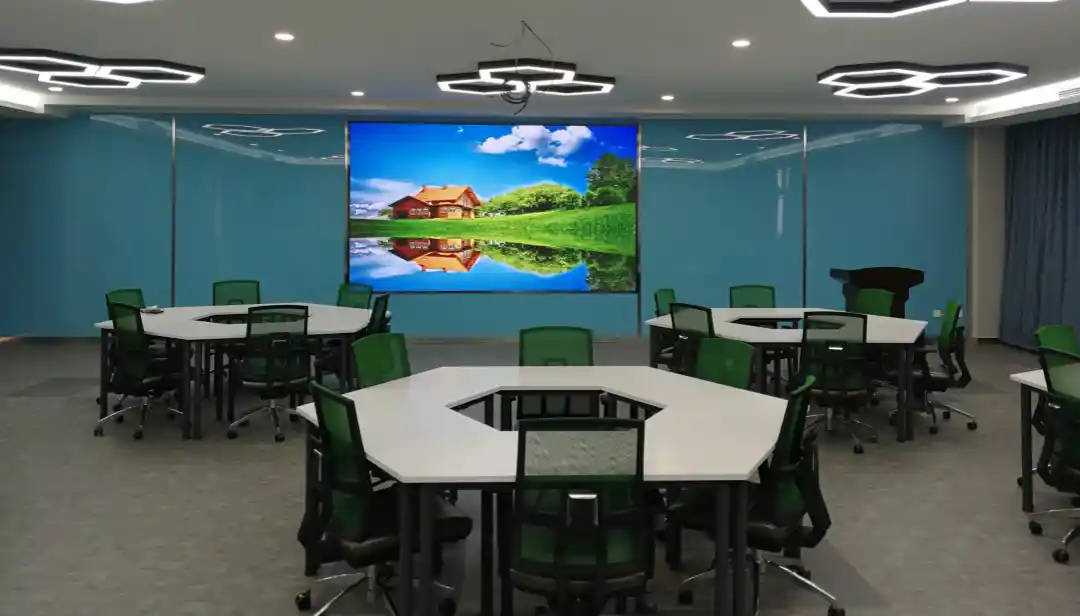

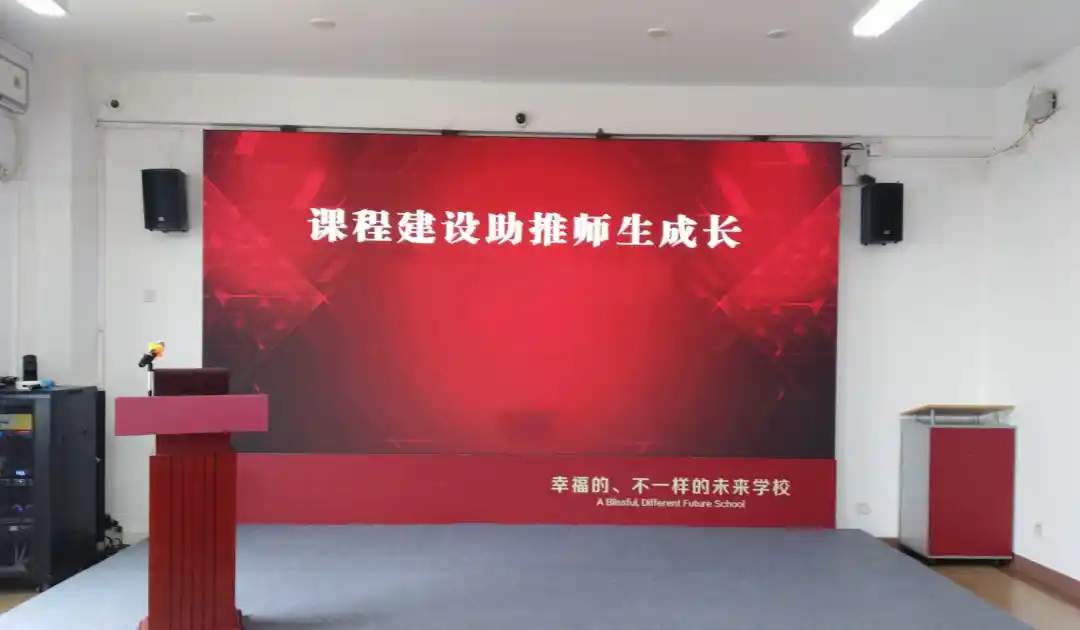

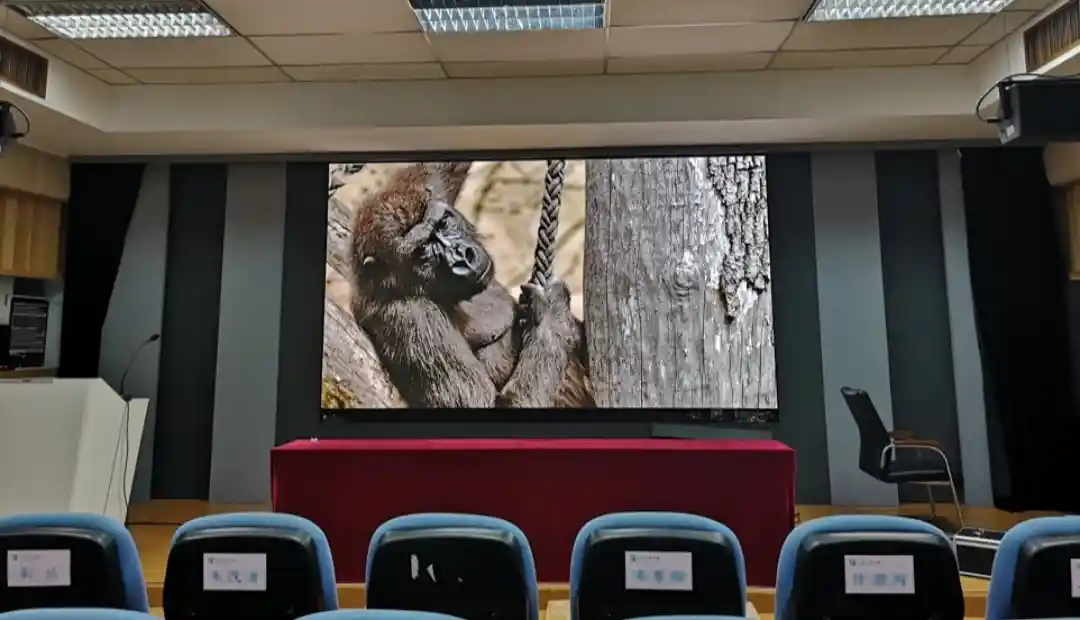

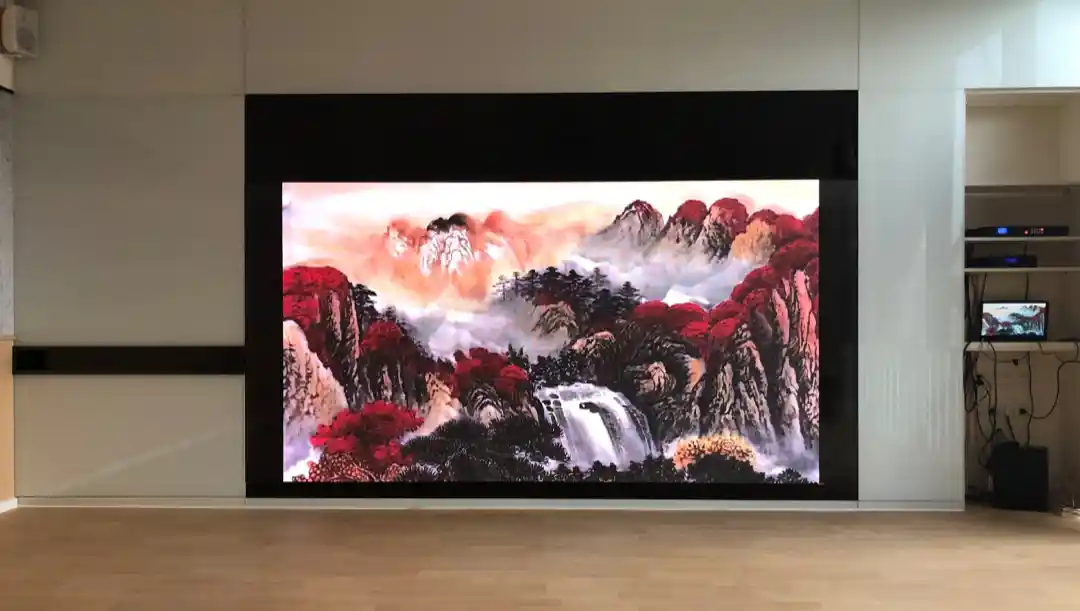

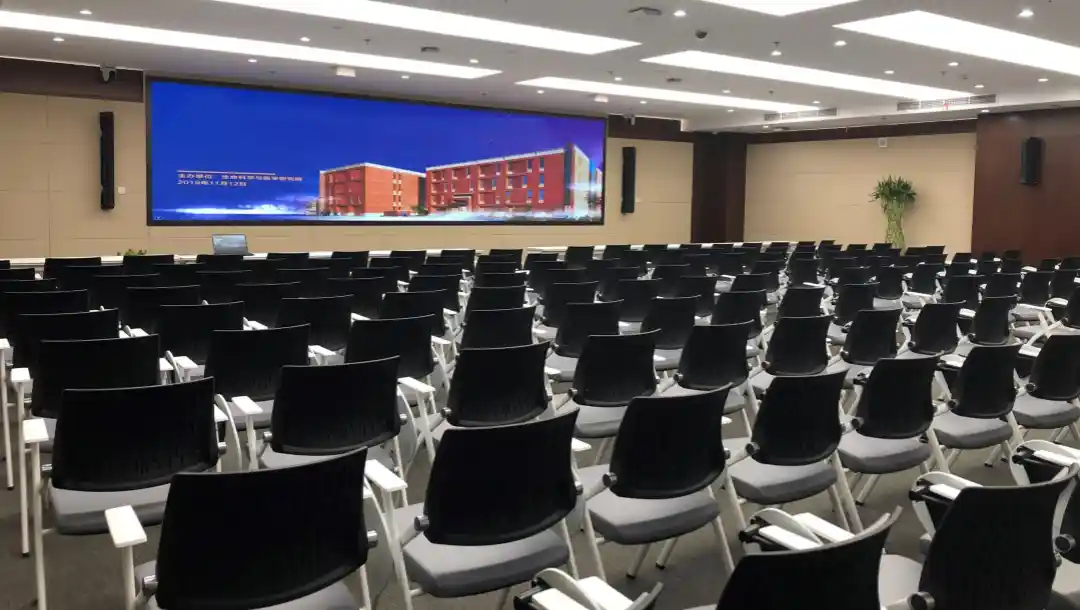

How does the LP series fit into the classroom scene?
In addition to efficient resistance to blue light, the screen selects professional lenses and designs optical paths. Ensure soft colors, non flickering screen, and visual fatigue to the human eye, ensuring long-term viewing.
Special lens structure for wall-like diffuse reflection, avoiding screen glare from direct light, ensuring clarity.
Consistent high grayscale and vivid colors even in low light. No need to close curtains for multimedia teaching in classrooms.
Standard 16:9 large screen, consisting of small display cabinets. The screen size can be freely designed.
Intelligent control system, touch function, smart pen, wireless screen projection, mobile bracket, etc. can be selected according to needs.

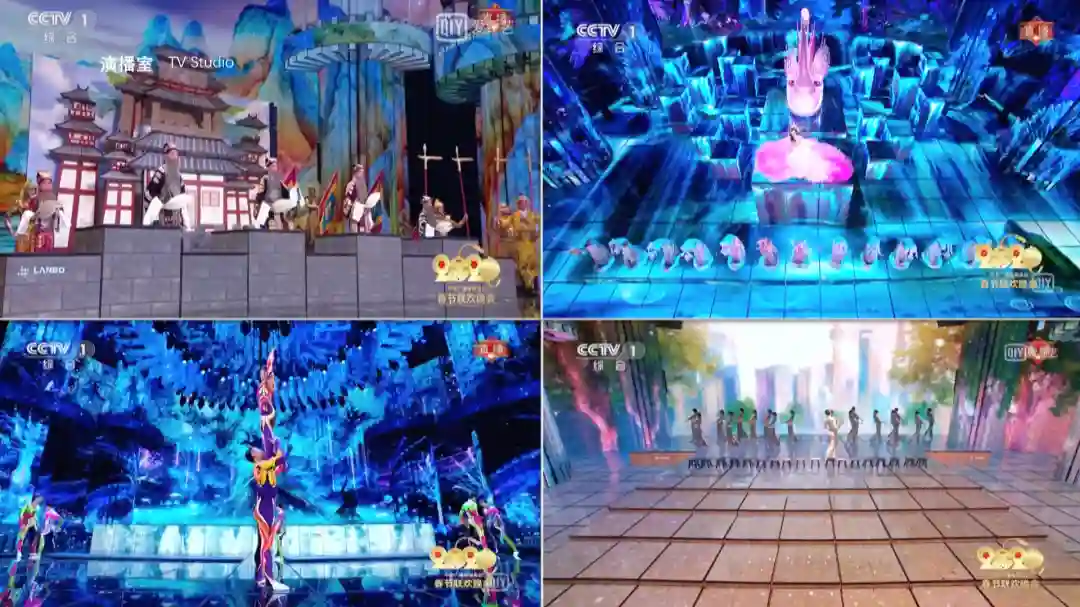

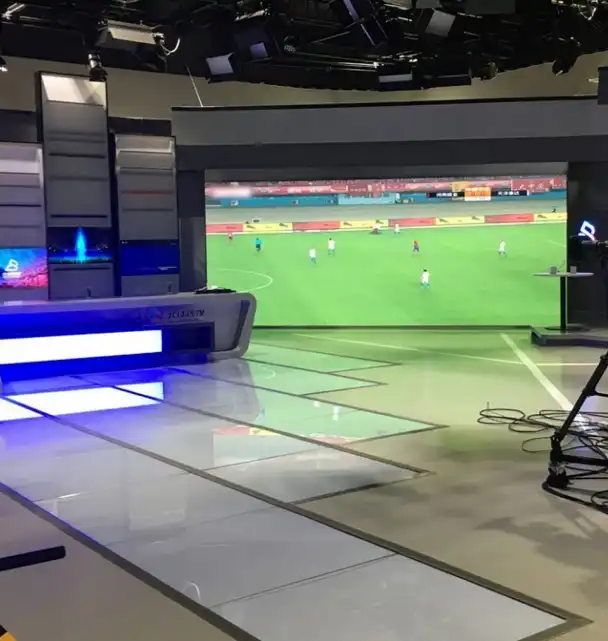

No moiré and suitable for stage photography
Nearly 100% of the pixel’s emitting area, presenting an ‘area light source’ for the overall display. Efficiently suppresses Moiré patterns. Can reduce moiré patterns by 80%. Suitable for close-up shooting, ideal for the broadcasting and television industry.
Better picture display, wide color gamut, wide viewing angle, high contrast, high grayscale, no seams, allowing the picture to be restored realistically.
Lightweight cabinet, easy to install and maintain

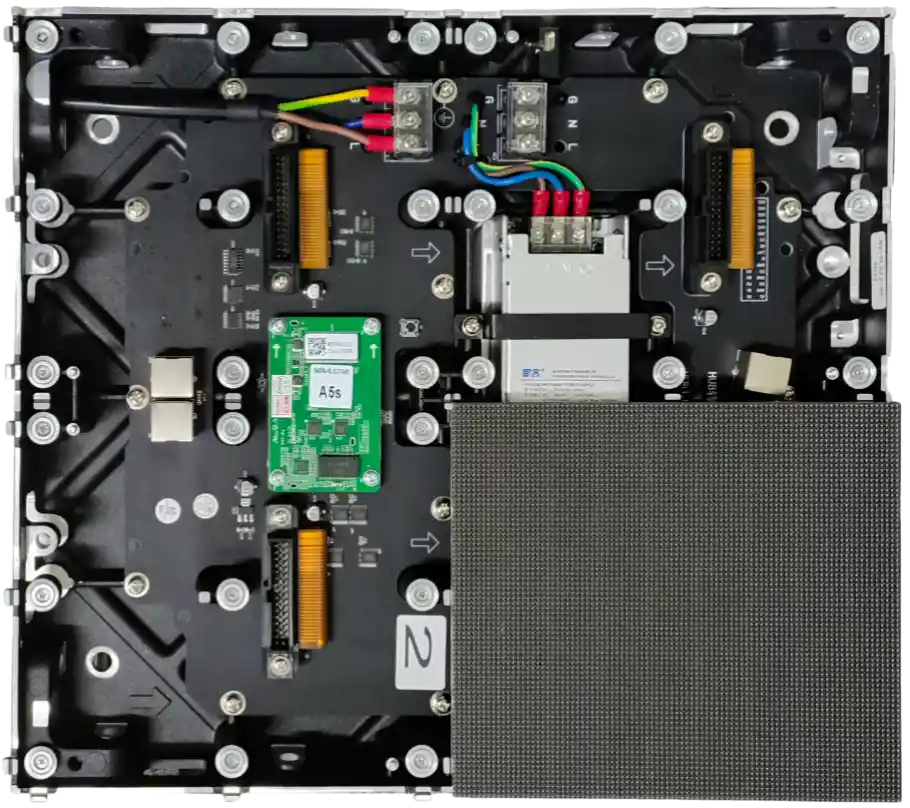

The display cabinet uses a standard die-cast aluminum cabinet. Integrated power supply, receiving card, network cable, and power cord make installation super convenient.
Magnetic module, front maintenance design, hard link design, stable and reliable.
High-performance receiving card, supports HDR.
Common cathode power supply design generally saves 40% energy.
Specifications
| Module | P1.6 | P1.9 | P3 | P3.75 |
|---|---|---|---|---|
| Standard screen size(mm) | 3200*1800 (customizable) | 3648*2052 (customizable) | 3840*2160 (customizable) | 4800*2700 (customizable) |
| Standard proportions | 16:09 | |||
| Cabinet size(mm) | 400*300 | 304*342 | 960*540 | 400*300 |
| Pixel pitch(mm) | 1.6 | 1.9 | 3 | 3.75 |
| Brightness(cd/㎡) | 220-450 | 220-450 | 220-512 | 220-450 |
| Contrast ratio | 108000:1 | 108000:1 | 98000:1 | 105000:1 |
| Average power(W/ ㎡) | 200 | 190 | 170 | 180 |
| Uniformity | >96% | |||
| Color gamut | >114% | |||
| Viewing angle | Horizontal 178° | |||
| Refresh rate | 1920-3840Hz | |||
| Reflectance radio | 6.50% | |||
| Installation method | Floor-standing/Wall-mounted/Embedded | |||
| Surface maintenance | Supports surface impact | |||
| Maintenance method | Front maintenance | |||
| Working temperature | -10℃-50°C / 14°-122°F | |||
| Working humidity | 10-60% no condensation | |||
Applications
