Factory-Direct Outdoor LED Display — DH-O-P960, 960×960mm, IP65, 88.5mm Thin
Buy your outdoor led display screen straight from the factory that builds it. The DH-O-P960 series is a 960×960mm die-cast aluminium cabinet engineered for 60℃ desert summers, coastal salt air and 24/7 roadside operation — 35% lighter, 30% more energy-efficient and serviceable from both the front and the rear. No Minimum Order Quantity.
✅IP65 fully waterproof (front & rear) — rain, dust and wash-down safe
✅4,500–10,000 nits + 15,000:1 contrast — readable in direct midday sun
✅3,840–7,680Hz refresh — flicker-free on camera and live broadcast
✅100–200 W/㎡ average — save up to 30% on electricity every year
35%
30%
7,680Hz
15,000:1

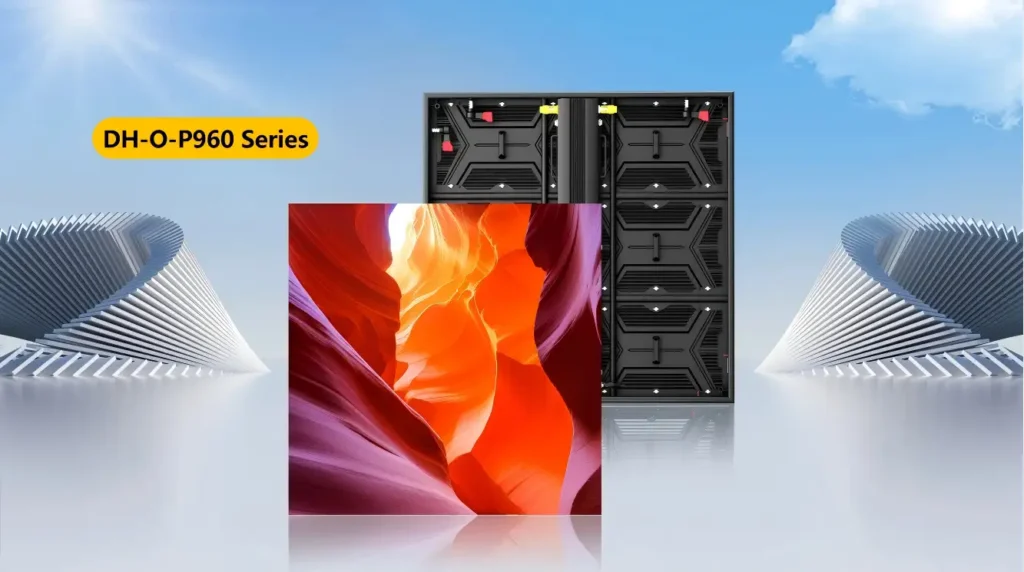

DH-O-P960 Series
One 960×960mm Cabinet, Six Pixel Pitches — Pick the Right Outdoor Led Video Wall
Whether you are quoting a highway billboard or a stadium perimeter, this outdoor led display screen platform scales from P4 to P10 on the same 480×320mm module architecture — so spares, tooling and installation crews stay identical across your projects. Choosing the correct led screen display outdoor configuration is simply a question of viewing distance and budget.
High-Resolution Close Range
P4 / P5 for storefronts, mall facades and stage backdrops where the audience stands 3–8 m away.
- SMD1921 LEDs · 62,500 / 40,000 dots/㎡
- 3–100 m best viewing distance
- Ideal for premium retail and live events
P4 · P5
Everyday Advertising Balance
P5.71 / P6.66 — the sweet spot for roadside and building-mounted advertising led display panels.
- SMD2727 LEDs · 30,625 / 22,500 dots/㎡
- Balanced brightness, power and cost
- Best-selling pitch for Middle East tenders
P5.71 · P6.66
Long-Range Mega Screens
P8 / P10 for highways, stadiums and city-skyline advertising where the viewer stands 10 m or more away.
- SMD2727 LEDs · 15,625 / 10,000 dots/㎡
- 10–200 m best viewing distance
- Lowest cost per square metre
P8 · P10
Other Series of DH-O

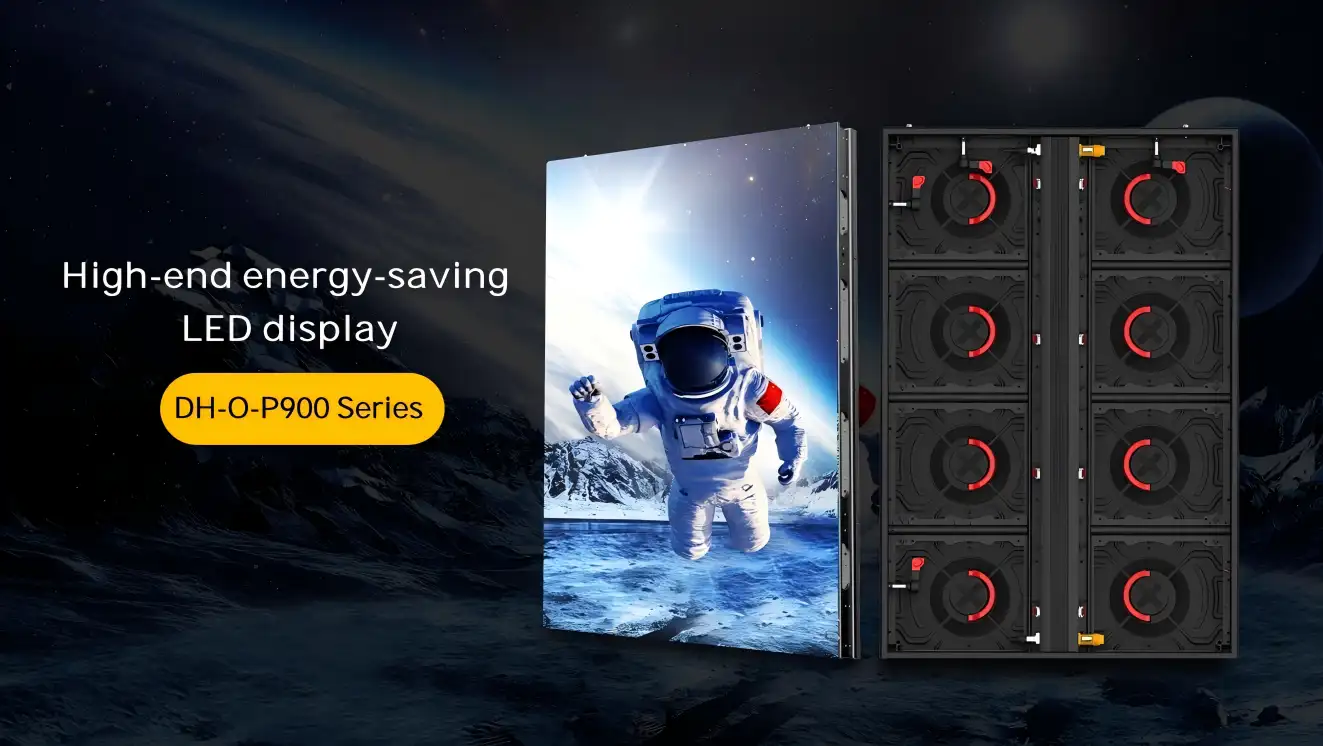

DH-O-P900 Series
SMD Pixel Pitch: P3.125, P4.16, P5, P6.25, P8.33, P10
Module Size: 400×300mm
Cabinet Size: 800×900mm, 800×1200mm, High refresh rate , High grey scale , Seamless splicing , Full-front and rearmaintenace

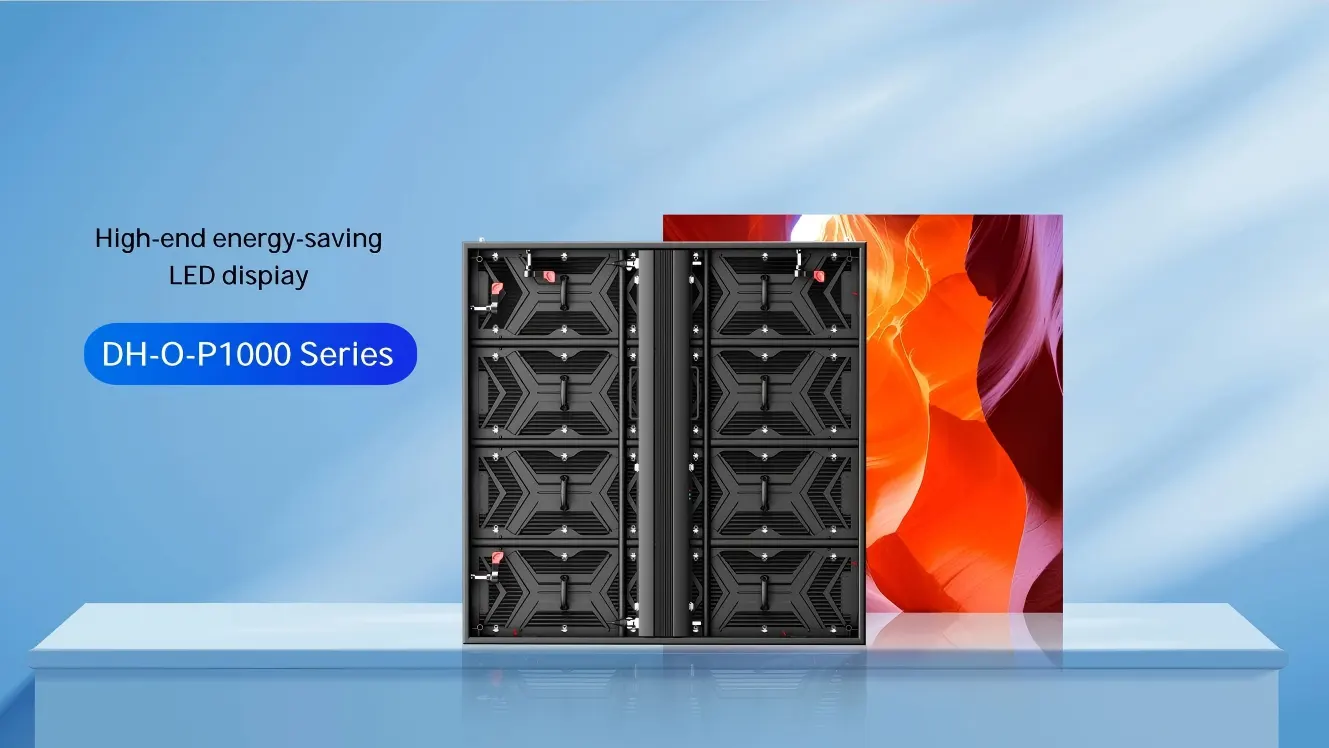

DH-O-P1000 Series
SMD Pixel Pitch: P2.976, P3.91, P4.81, P6.25, P7.81, P10.42
Module Size: 500×250mm
Cabinet Size: 1000×1000mm, 1000×750mm, 1000×500mm, High-end energy-saving LED dispiay, IP65 Waterproof for both front and back side

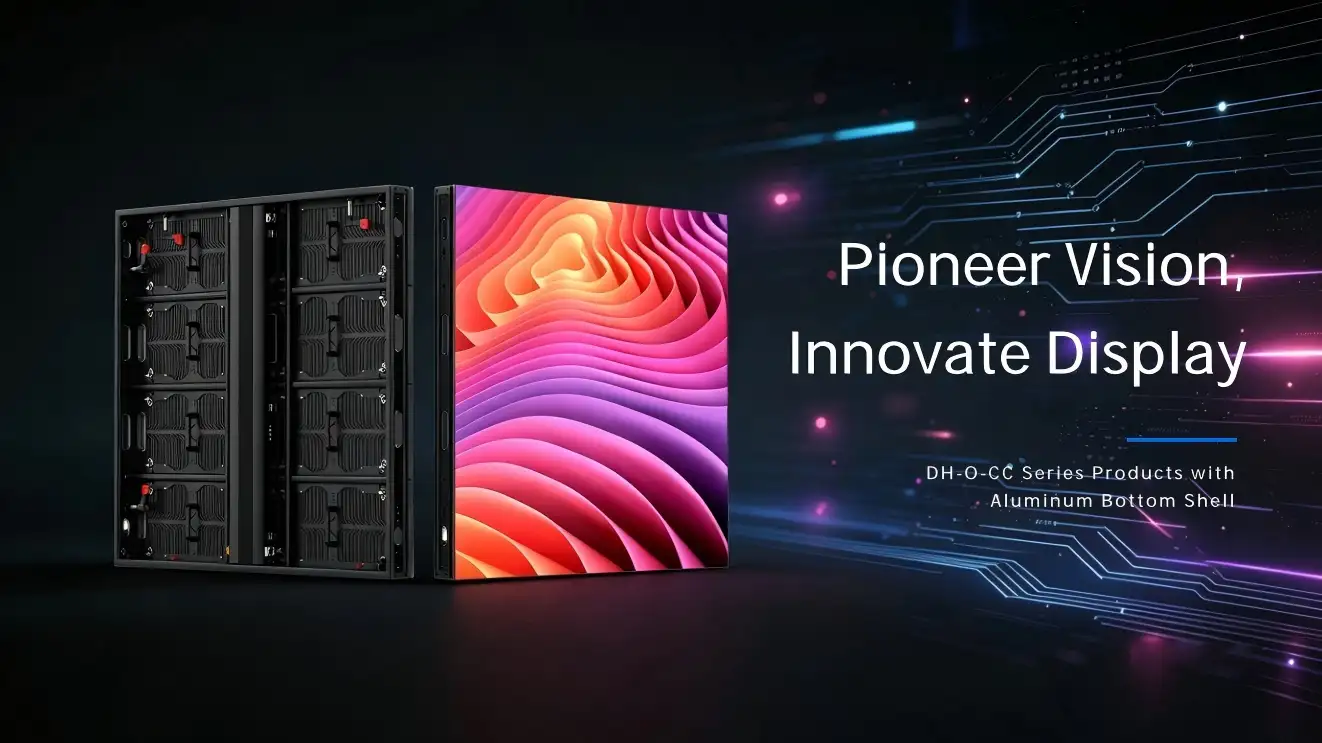

DH-O-CC Series
SMD Pixel Pitch:P2.976, P3.91, P4.81, P6.25, P7.81, P10.42
Module Size: 500×250mm
Cabinet Size: 1000×1000mm, 1000×750mm, 1000×500mm, Common Cathode Series Products with Aluminum Bottom Shell

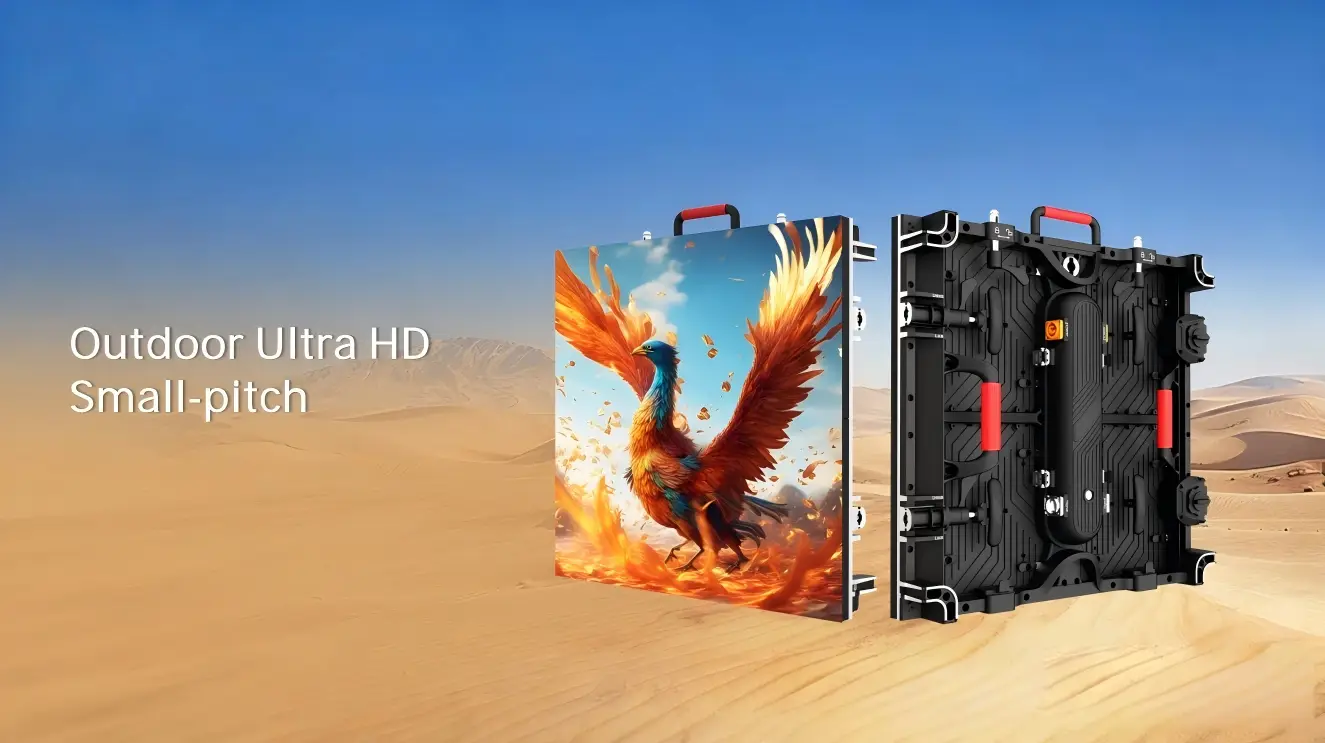

DH-O-SP Series
MIP Pixel Pitch: P1.25, P1.3, P1.5625, P1.95
Module Size: 250×250mm
Cabinet Size: 500×500mm, 500×750mm, 500×1000mm, MIP New Packaging Technology, Outdoor Ultra HD Small-pitch
Full Technical Data
DH-O-P960 Series Specification Sheet
Every number below comes straight from the factory datasheet — compare the six pitches of this outdoor display screen side by side before you request a quotation.
| Parameter | P4 | P5 | P5.71 | P6.66 | P8 | P10 |
|---|---|---|---|---|---|---|
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density (dots/㎡) | 62,500 | 40,000 | 30,625 | 22,500 | 15,625 | 10,000 |
| Module Resolution | 120×80 | 96×64 | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Size (mm) | 480×320 | 480×320 | 480×320 | 480×320 | 480×320 | 480×320 |
| Cabinet Size (mm) | 960×960×88.5 (960×1280 optional) | 960×960×88.5 (960×1280 optional) | 960×960×88.5 (960×1280 optional) | 960×960×88.5 (960×1280 optional) | 960×960×88.5 (960×1280 optional) | 960×960×88.5 (960×1280 optional) |
| Cabinet Resolution | 240×240 | 192×192 | 168×168 | 144×144 | 120×120 | 96×96 |
| Modules per Cabinet (W×H) | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 |
| Cabinet Weight (kg) | 21 | 21 | 21 | 21 | 21 | 21 |
| Maintenance | Front & rear | Front & rear | Front & rear | Front & rear | Front & rear | Front & rear |
| Cabinet Material | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Brightness (nits) | 4,500–8,000 (optional) | 5,000–10,000 (optional) | 5,000–10,000 (optional) | 6,000–10,000 (optional) | 6,000–10,000 (optional) | 6,000–10,000 (optional) |
| Color Temperature (K) | 5,000–12,000 (optional) | 5,000–12,000 (optional) | 5,000–12,000 (optional) | 5,000–12,000 (optional) | 5,000–12,000 (optional) | 5,000–12,000 (optional) |
| Viewing Angle V/H | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° |
| Best Viewing Distance | 3–100 m | 4–100 m | 4–100 m | 4–100 m | 4–100 m | 10–200 m |
| Contrast Ratio | 15,000:1 | 15,000:1 | 15,000:1 | 15,000:1 | 15,000:1 | 15,000:1 |
| Frame Rate | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Scan Mode | 1/8 scan | 1/8 scan | 1/7 scan | 1/6 scan | 1/4 scan | 1/2 scan |
| Grayscale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh Rate (Hz) | 3,840–7,680 | 3,840–7,680 | 3,840–7,680 | 3,840–7,680 | 3,840–7,680 | 3,840–7,680 |
| Max Power (W/㎡) | 800 | 800 | 800 | 800 | 800 | 800 |
| Average Power (W/㎡) | 200–300 | 100–200 | 100–200 | 100–200 | 100–200 | 100–200 |
| Protection Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Input Power | AC 90–264V, 47–63Hz | AC 90–264V, 47–63Hz | AC 90–264V, 47–63Hz | AC 90–264V, 47–63Hz | AC 90–264V, 47–63Hz | AC 90–264V, 47–63Hz |
| Operating Temp / Humidity | -20~60℃, 10%~85% RH | -20~60℃, 10%~85% RH | -20~60℃, 10%~85% RH | -20~60℃, 10%~85% RH | -20~60℃, 10%~85% RH | -20~60℃, 10%~85% RH |
| Storage Temp / Humidity | -20~60℃, 10%~85% RH | -20~60℃, 10%~85% RH | -20~60℃, 10%~85% RH | -20~60℃, 10%~85% RH | -20~60℃, 10%~85% RH | -20~60℃, 10%~85% RH |
| Certification | CCC / CE / RoHS / FCC / CB / TUV / IEC | CCC / CE / RoHS / FCC / CB / TUV / IEC | CCC / CE / RoHS / FCC / CB / TUV / IEC | CCC / CE / RoHS / FCC / CB / TUV / IEC | CCC / CE / RoHS / FCC / CB / TUV / IEC | CCC / CE / RoHS / FCC / CB / TUV / IEC |
Engineering note: a 960×960mm cabinet carries 2 modules across × 3 modules high = 6 modules of 480×320mm each. Optional 960×1280mm cabinets are available on request.

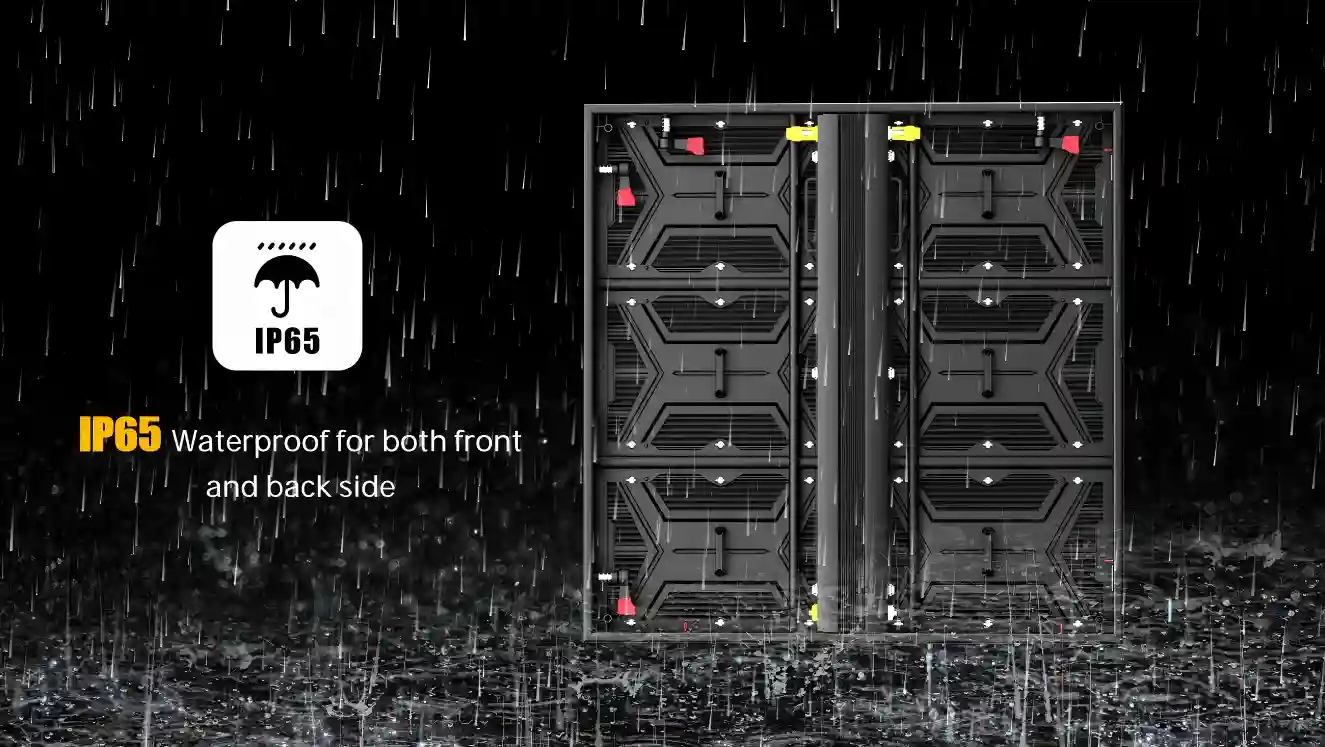

IP65 Waterproof, Front & Rear
Sealed die-cast aluminium frame plus waterproof connectors. Every batch passes a 48-hour aging test and a real rain-spray test before it ships.

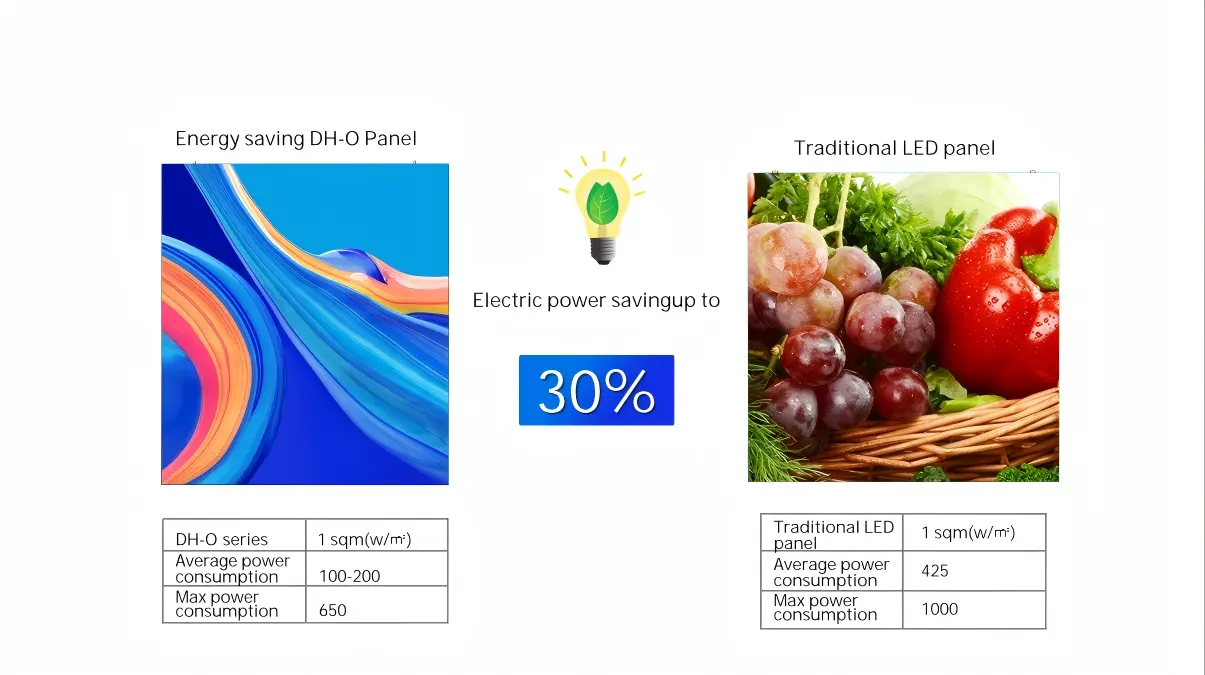

30% Energy Saving
The DH-O energy-saving panel averages 100–200 W/㎡ against roughly 425 W/㎡ for a conventional outdoor display screen — the saving compounds every single year.

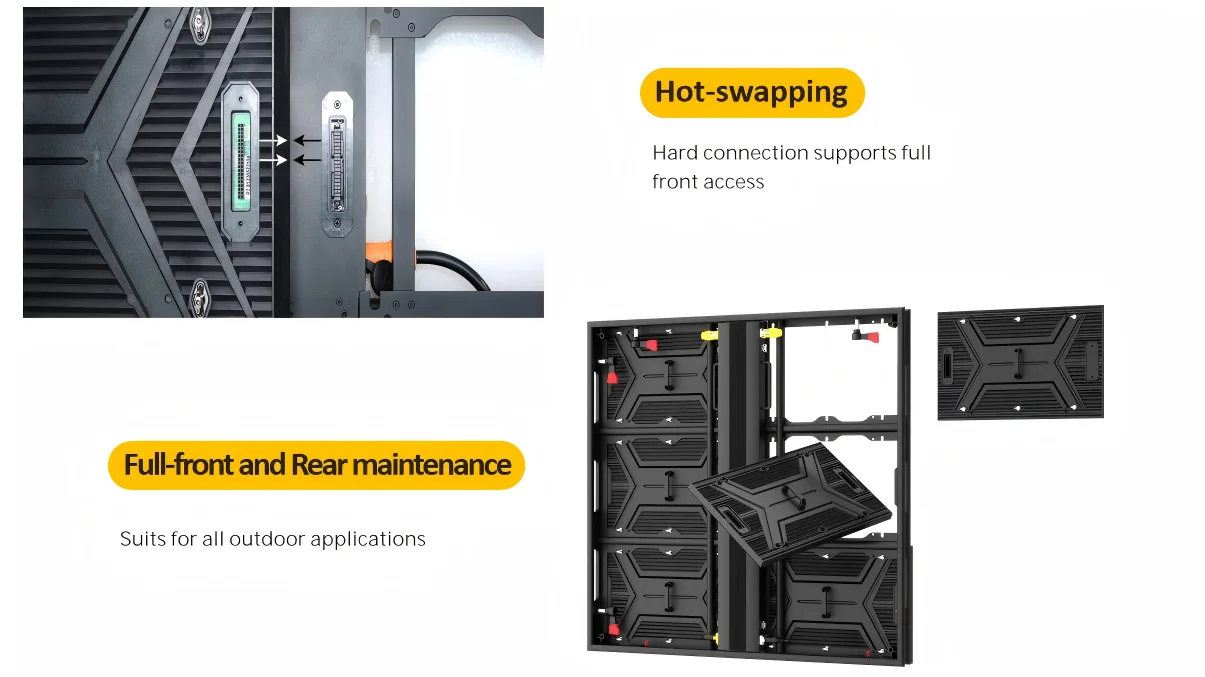

Hot-Swap Front & Rear Service
Stainless-steel quick locks and hot-swapping modules mean a single module swap takes minutes — no dismantling the screen, no long downtime.

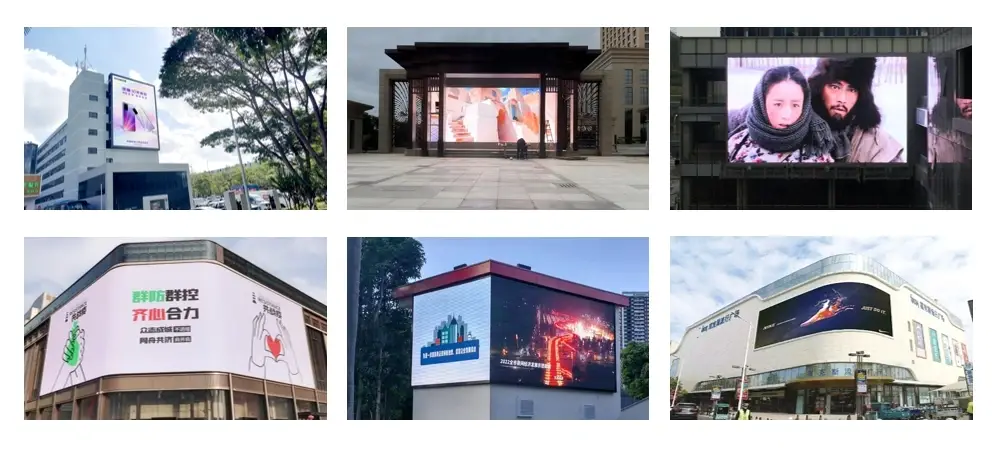

Where This Outdoor Led Video Wall Performs
From a single storefront to a city-scale network, the same cabinet serves every outdoor scenario — and one spare-part inventory covers them all.
Roadside & Billboard Advertising
High-brightness outdoor advertising led display screen builds that stay legible against a 100,000-lux desert sun and hold their colour from dawn to dusk.
Building Facades & Retail
A slim 88.5mm outdoor video wall mounts tight to the wall, keeps sightlines clean and blends into premium architecture.
Stadiums & Live Events
3,840–7,680Hz refresh and 16-bit grayscale keep the outdoor led video wall flicker-free under broadcast cameras and slow-motion replays.
Transport & Highway Gantries
IP65 front and rear protection shrugs off rain, dust storms and vehicle spray, so your outdoor display screen keeps running through the season.
Fuel Stations & Drive-Thru
Fast refresh, a wide 160° viewing angle and low power draw suit 24/7 sites where every watt of running cost matters.
Rental & Mobile Stages
The 35%-lighter cabinet and quick-lock splicing cut truck loads, crane time and crew hours on every outdoor video wall build.
Eight Field Problems, Eight Engineered Answers
These are the complaints we hear from outdoor LED buyers every week — and exactly how the DH-O-P960 outdoor led display answers each one.
Rain and dust cause short circuits
IP65 waterproofing on both the front and the rear of every cabinet, plus sealed connectors — no water ingress, no corrosion.
The screen looks washed out in daylight
4,500–10,000 nits brightness with a matte corrugation module mask delivering 15,000:1 contrast — readable at noon, not only at night.
Visible flicker and scan lines on camera
A 3,840–7,680Hz refresh rate and 16-bit grayscale remove banding for live streams, TV coverage and phone video.
Electricity bills are painful
Average power of just 100–200 W/㎡ versus ~425 W/㎡ for legacy screens — roughly 30% saved, every year, for the life of the display.
Freight, rigging and labour cost too much
A 35%-lighter 21kg cabinet and a large 960×960mm format mean fewer cabinets, fewer crates and a lower installed cost per square metre.
Repairs mean dismantling the whole screen
Full front & rear maintenance, hot-swapping modules and stainless-steel quick locks — swap a module in minutes, not days.
Uneven panels, dark seams and colour shifts
High-precision die-cast aluminium cabinets and seamless splicing hold a perfectly flat surface and consistent colour across the wall.
Opaque pricing and endless middlemen
Buy direct from the Shenzhen factory that builds the cabinet — transparent FOB pricing and a formal quote within 24 hours.
From Enquiry to Container
How Your Order Ships
A transparent five-step process, so you always know what happens next — and when.
1 · Send requirements
Share size, pitch, viewing distance and site photos.
2 · Quote in 24h
Formal FOB quote plus a free layout drawing.
3 · Sample & confirm
Optional sample cabinet for on-site approval.
4 · Production
48h aging test, waterproof test and photo/video QC.
5 · Ship & support
Container loading video, install guide and remote support.
Outdoor LED Display FAQ
A waterproof outdoor led display panel price is typically close to a non-waterproof industrial screen of the same pitch, because IP65 protection is built into the standard DH-O-P960 cabinet rather than sold as an upgrade. The real difference shows up in total ownership: 30% lower energy use and 35% lower cabinet weight cut your running and freight costs over the life of the screen.
Yes. Both the front and the rear of the cabinet are rated IP65, with sealed gaskets and waterproof connectors. Each batch also passes a rain-spray test and a 48-hour aging test before shipping.
No. The 3,840–7,680Hz refresh rate and 16-bit grayscale eliminate scan lines and banding, which is why events, stadiums and TV-grade outdoor led video wall projects specify this platform.
At an average of 150 W/㎡, a 100㎡ Ti-960 screen running 14 hours a day consumes roughly 210 kWh per day — about US$7,665 a year at US$0.10/kWh, versus roughly US$21,718 for a traditional 425 W/㎡ panel. Over five years that is around US$70,000 saved.
Full front and rear maintenance with hot-swapping modules and stainless-steel quick locks. A single module can be replaced in minutes from the front — no need to dismantle the wall, and no long downtime.
